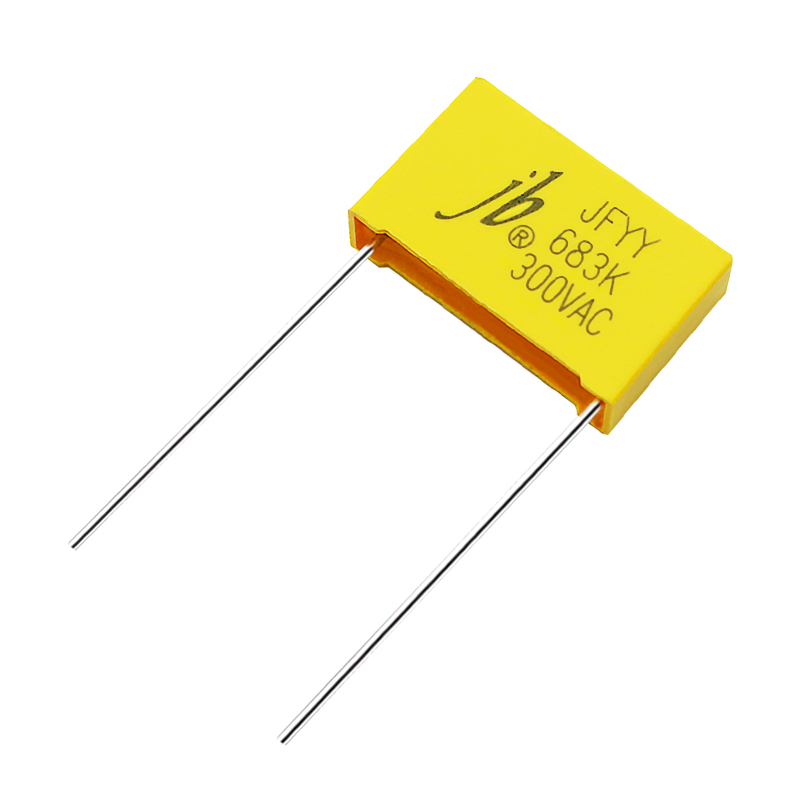

JFYY – Y2 Metallized Polypropylene Film Capacitors
The JFYY Y2 Metallized Polypropylene Film Capacitor by jb Capacitors is designed for AC line-to-ground EMI suppression, offering high capacitance stability and reliable Y2 safety performance. With a box-type flame-retardant construction and excellent overvoltage endurance, the JFYY series meets international standards for interference suppression circuits, including antenna coupling and line-bypass protection.
Its self-healing metallized polypropylene structure, combined with excellent flame resistance, makes it a preferred choice for compact and safety-critical power systems. jb Capacitors ensures competitive pricing, quick delivery, and strong technical support across all global markets.
Description
Features
- Metallized polypropylene structure.
- Withstanding overvoltage stressing.
- Excellent active and passive flame resistant abilities.
- Widely used in line to ground, line-by-pass, antenna coupling interference suppression circuit, etc.
Specifications
Specifications
| Climatic Category | 40/110/56 |
|---|---|
| Operating Temperature | -40℃ to +110℃ |
| Permissible DC Voltage | 2000VDC at 85℃ |
| Permissible DC Voltage | 1500VDC at 105℃ |
| Rated Voltage | 250VAC, 300VAC 50/60Hz |
| Capacitance Range | 1500pF~0.82µF |
| Capacitance Tolerance | K: (±10%), M: (±20%) |
| Voltage Proof | Between two leads 3000(DC) (5S) |
| Voltage Applied Speed | 300V/S |
| Dissipation Factor | 0.0015uF≤CR≤0.33uF ≤0.1% (1kHz,20℃) 0.33uF＜CR≤0.82uF ≤0.2% (1kHz,20℃) |
| Insulation Resistance | ≥15000MΩ； CR≤0.33μF ≥5000S； CR＞0.33μF （20℃，100V,1min） |

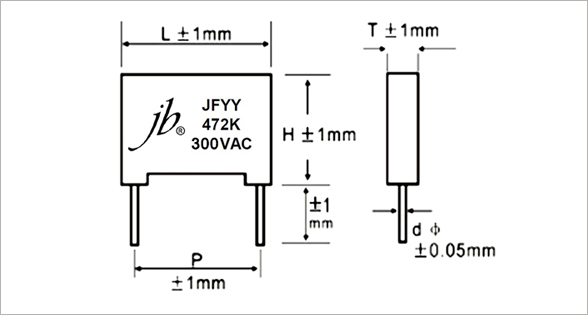

Drawing
Drawing
JFYY - Y2 Metallized Polypropylene Film Capacitors
