Industrial Aluminum Electrolytic Capacitors | Series Overview
What Are Aluminum Electrolytic Capacitors?
Aluminum electrolytic capacitors are polarized capacitors that use an aluminum oxide dielectric layer to achieve high capacitance per volume. They are widely used in AC-DC power supplies, DC-DC converters, industrial SMPS, inverters, motor drives, and renewable energy systems.
Compared with ceramic and film capacitors, aluminum electrolytic capacitors provide:
- Higher capacitance values (µF to mF range)
- Cost-effective bulk energy storage
- Strong ripple current capability
- Wide voltage range for industrial systems
jb offers a complete portfolio of aluminum electrolytic capacitors engineered for industrial SMPS, DC-DC converters, inverters, motor drives, LED drivers, and power electronics systems.
Explore the complete product category:
Aluminum Electrolytic Capacitors – Full Category →

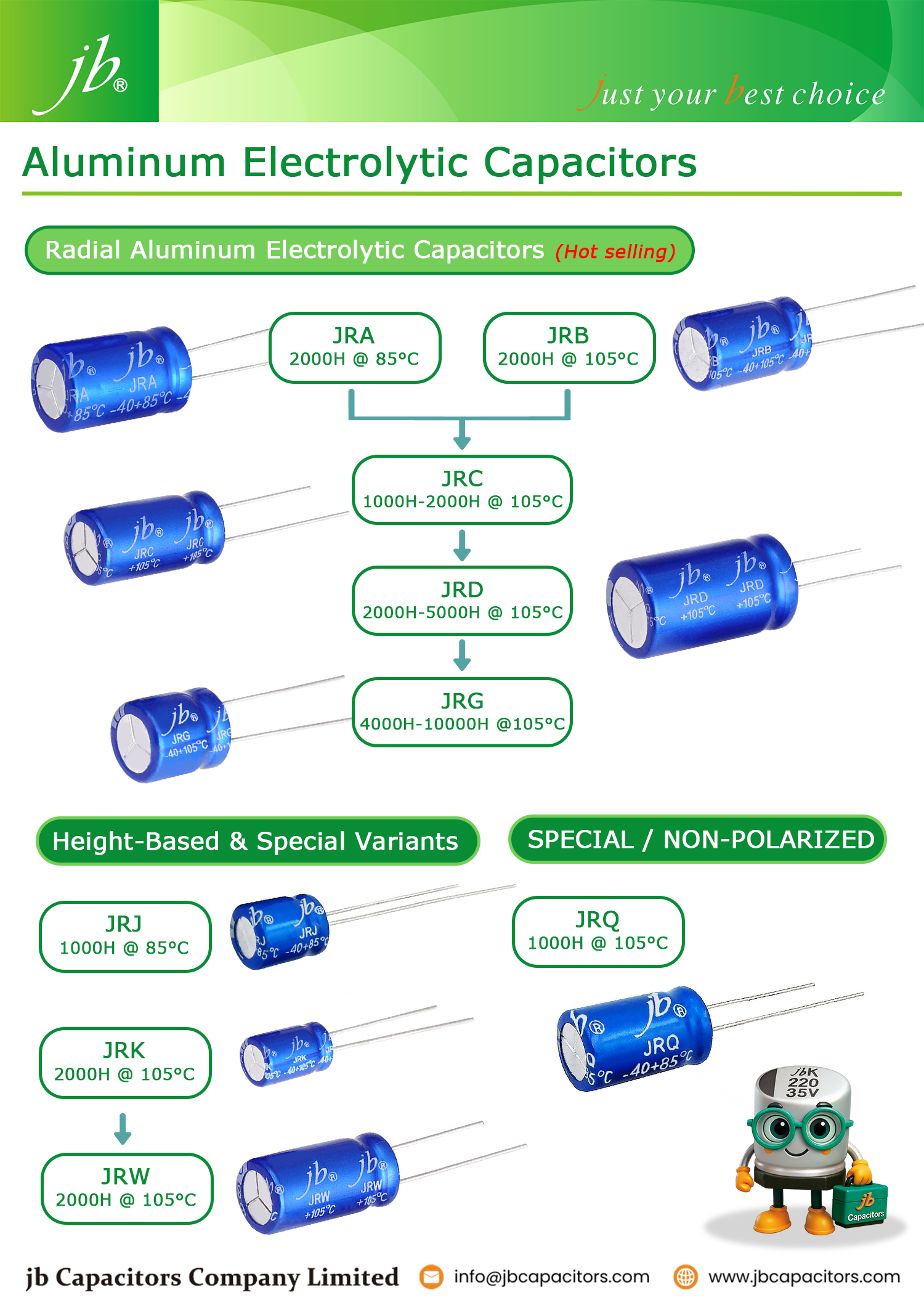

1. Radial Aluminum Electrolytic Capacitors
Radial aluminum electrolytic capacitors are widely used in general SMPS, industrial control boards, LED drivers, and embedded power modules.
- Low ESR series available
- Rated up to 105°C
- Long-life industrial grade
- Compact PCB footprint

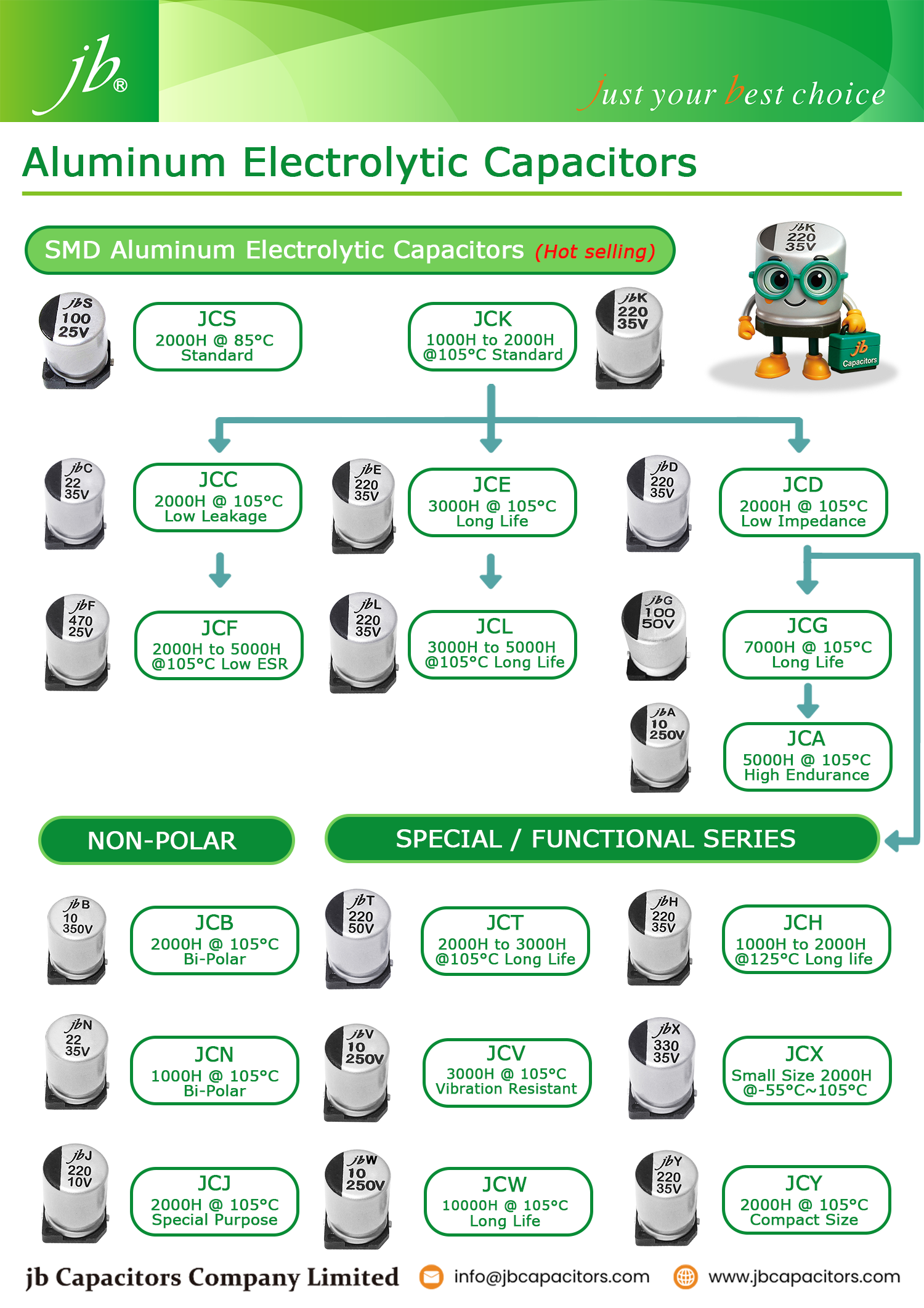

2. SMD Aluminum Electrolytic Capacitors
SMD aluminum electrolytic capacitors support automated SMT production and high-density PCB layouts.
- Compact case sizes
- Reflow compatible
- Low impedance performance
- Stable ripple control

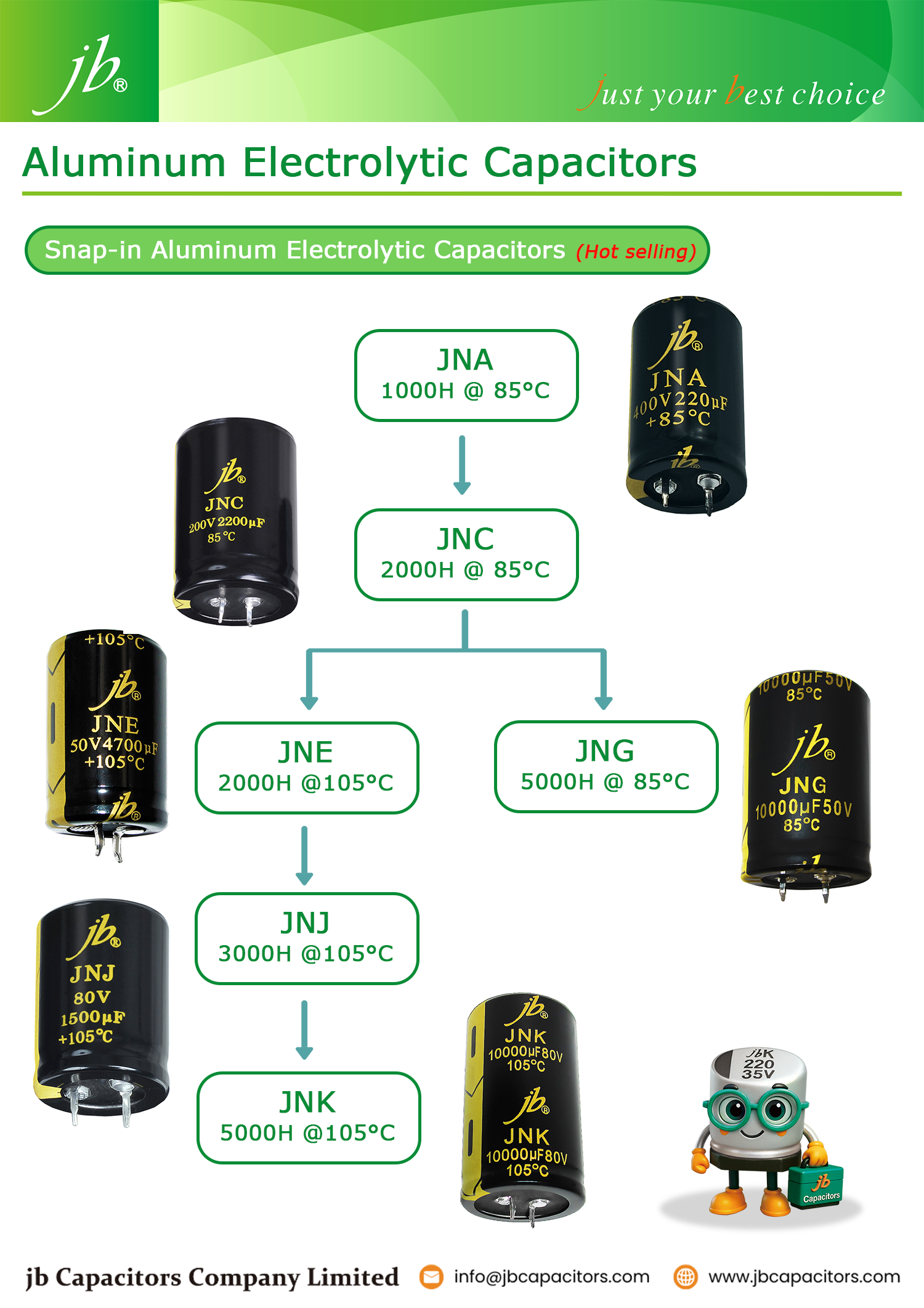

3. Snap-in Aluminum Electrolytic Capacitors
Snap-in capacitors are commonly selected for DC link filtering, inverter modules, UPS systems, and high-power industrial SMPS.
- High ripple RMS capability
- High voltage rating
- Industrial endurance
- Strong mechanical stability
4. Screw Terminal Aluminum Electrolytic Capacitors
For higher voltage and larger capacitance requirements, screw terminal capacitors are typically used in inverter cabinets and industrial DC link banks.
5. Motor Capacitors
Motor capacitors support HVAC compressors, pumps, fans, and industrial motor drive systems.
- Motor run and motor start types
- High insulation resistance
- Stable capacitance tolerance
- Continuous operation capability
Application-Based Selection Guidance
- Capacitance requirement (µF)
- Voltage derating margin
- Ripple RMS current
- ESR at operating frequency
- Expected lifetime at ambient temperature
Industrial Applications
- AC-DC power supplies
- DC-DC converters
- Industrial SMPS
- Inverter and motor drives
- Renewable energy systems
- UPS systems
- Automation control boards
Why Choose jb as Your Aluminum Electrolytic Capacitor Supplier
- Wide voltage and capacitance coverage
- 105°C long-life industrial series
- High ripple current capability
- Stable global supply chain
- Engineering support for cross-reference replacement
