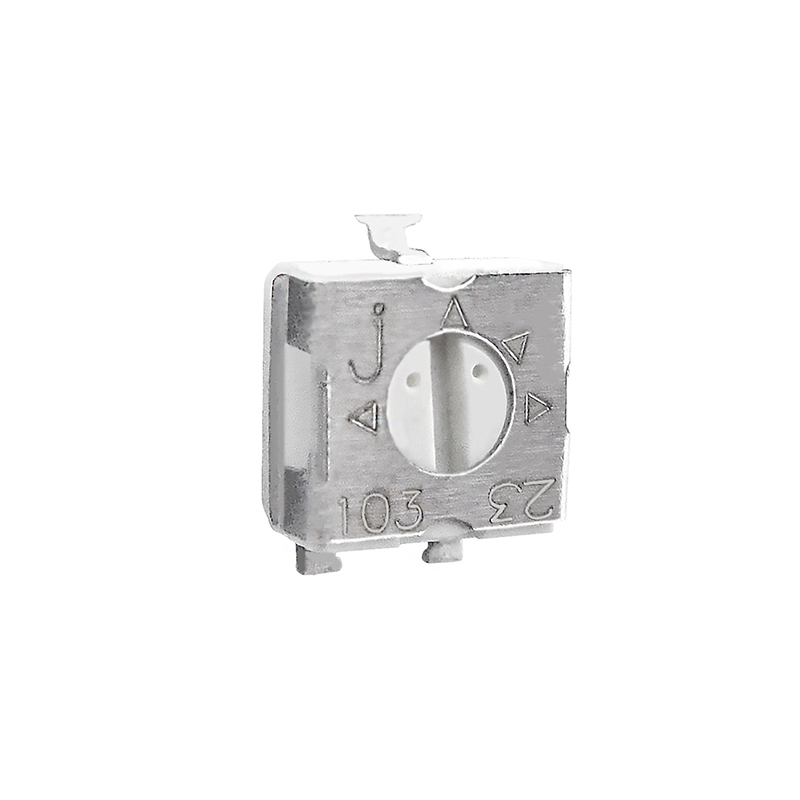

JBR-3314 Surface Mount 4mm Square Single-Turn Cermet Trimming Potentiometers
The JBR-3314 trimming potentiometer is a 4mm square surface-mounted SMD device designed for precise resistance adjustments in compact circuitry. Featuring a single-turn cermet element, it ensures stability and reliability across industrial and consumer electronics.
Engineered for automated surface-mount processes, this model provides space-saving installation and consistent electrical performance, making it suitable for fine-tuning in calibration circuits, sensors, and control modules.
Specifications
Electrical Characteristics
| Standard Resistance Range | 10Ω - 2MΩ |
|---|---|
| Resistance Tolerance | ± 20% (Standard) |
| End Resistance | 1% or 2Ω max. (whichever is larger) |
| Contact Resistance Variation | 3% or 3Ω |
| Resolution | Infinite |
| Insulation Resistance | 500 VDC. 100 megohms min. |
| Dielectric Strength | 500 VAC (1 minute) |
| Adjustment Angle | 210° (nominal) |
