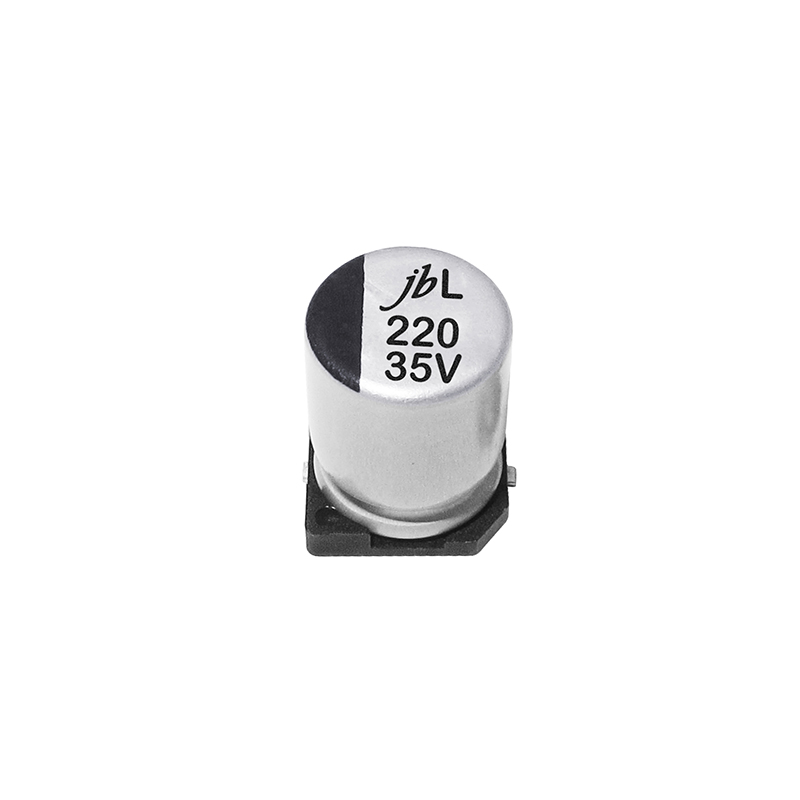

JCL – 3000H-5000H at 105°C SMD Aluminum Electrolytic Capacitors

JCL series SMD aluminum electrolytic capacitors from jb Capacitors deliver outstanding reliability with a load life of 3000 to 5000 hours at 105°C. Designed to operate across a wide temperature range from -55°C to +105°C, they are suitable for demanding environments and long-term use. Compact and RoHS compliant, these capacitors support high-density surface-mount applications.

Description

Features

  • Wide temperature range -55~+105°C.
  • Load life of 3000~5000 hours.
  • Comply with the RoHS directive.
Specifications

Specifications

Operating Temperature -55°C~+105°C
Voltage Range 6.3V~100V.DC
Capacitance Range 0.1 ~ 1500μF
Capacitance Tolerance ±20% at 120Hz, 20°C
Leakage Current Leakage current (Φ4~Φ10) ≤0.01CV or 3μA, whichever is greater (after 2 minutes application of rated voltage)Leakage current (Φ12.5~Φ16) ≤0.03CV or 4μA, whichever is greater (after 1 minutes application of rated voltage)
