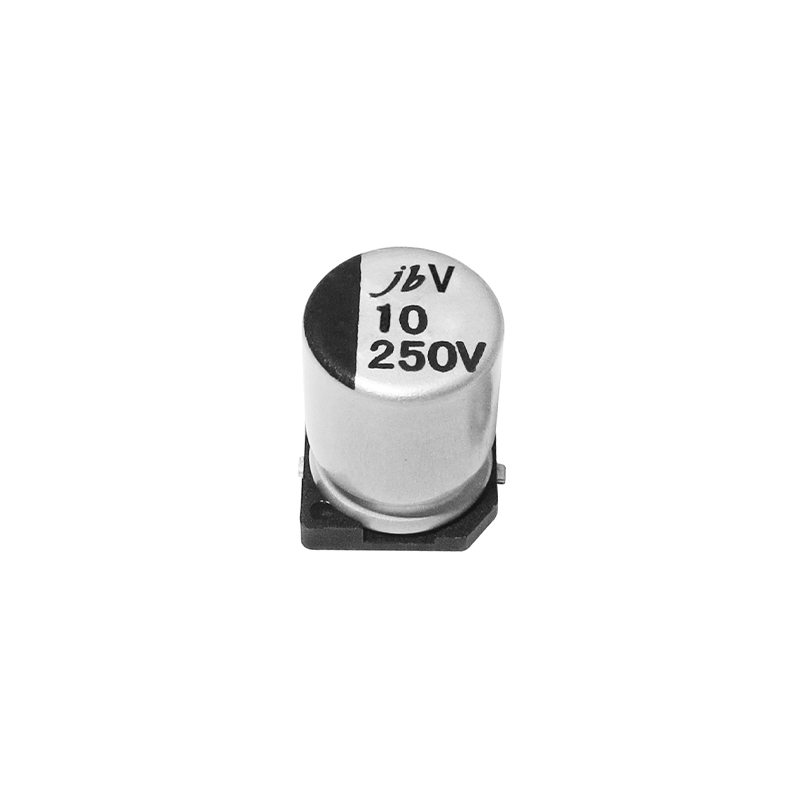

JCV – 3000H at 105°C, Long Life Assurance SMD Aluminum Electrolytic Capacitors
JCV series 3000H at 105°C SMD aluminum electrolytic capacitors deliver dependable performance for compact and high-density PCB designs. With a long life assurance of 3000 hours at 105°C, these capacitors ensure excellent stability and reliability under continuous operation.
Designed for surface mounting and compatible with reflow soldering processes, the JCV series is ideal for applications requiring space efficiency, RoHS compliance, and cost-effectiveness.
Description
Features
- Life time 105℃ 3000hrs standard product
- High stability and reliability
- Reflow soldering is available
- Available for high densify surface mounting
- Comply with the RoHS directive.
Specifications
Specifications
| Operating Temperature | -40°C~ +105°C |
|---|---|
| Voltage Range | 160V ~ 450V.DC |
| Capacitance Range | 1 ~ 22μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | I = 0.04CV (μA) + 100 (μA) after 2 minutes |
