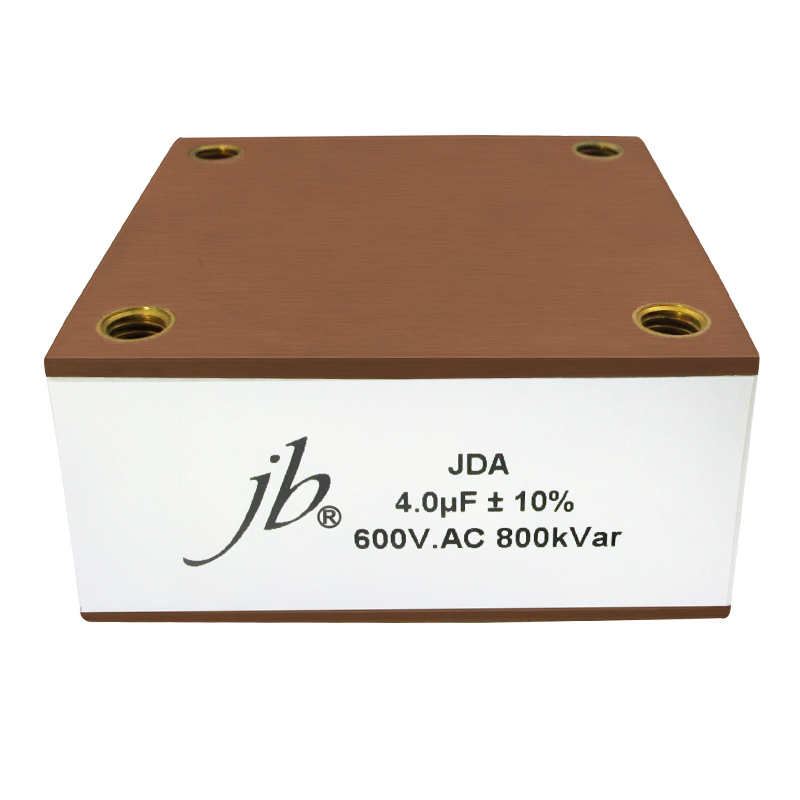

JDA – Conduction Cooled Capacitors

jb JDA Conduction Cooled Capacitors provide reliable high voltage and high frequency performance, optimized for resonant power devices in demanding applications. With capacitance values from 0.1µF to 84µF and ratings up to 1500kVar, these capacitors feature excellent dv/dt capability, low dissipation factor, and long lifetime operation. They are widely used in high power, high frequency resonant circuits where stability and durability are essential.

Datasheet
Add to wishlist
Add to quote
Description

Features

  • High voltage, high frequency
  • High dv/dt characteristics, can bear high current
  • Good heat radiation performance, Self-healing
Specifications

Specifications

Items Characteristics
Reference Standards GB/T 3984, IEC 60110-1
Operating Temperature Range -25℃ ~ +85℃
Capacitance Range 0.1µF ~ 84µF
Rated Capacity 300kVar, 600kVar, 750kVar, 800kVar, 1500kVar
Rated Voltage 400VAC ~ 1000VAC
Tolerance ±5%, ±10%
Dissipation Factor tgδ ≤ 5×10-4 at 25℃ ±5℃, 1kHz
Insulation Resistance C·R ≥ 5000s at 100VDC, 25℃ ±5℃, 60s
Test Voltage (between terminals) 1.5Un (10s, 25℃ ±5℃)
Test Voltage (terminals to case) 3000VAC (10s, 50/60Hz, 25℃ ±5℃)
Max Altitude 2000m
Expected Lifetime 200,000 hrs @ Un, θhs = 70℃
Failure Rate 100 FIT
