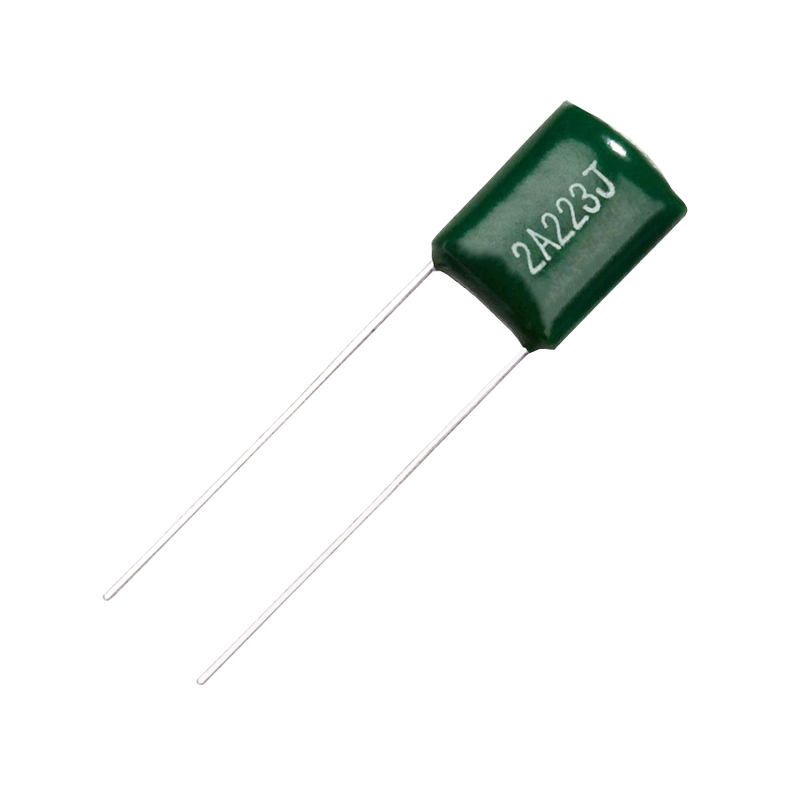

JFA – Mylar Polyester Film Capacitors
JFA mylar polyester film capacitors deliver reliable, cost-efficient performance for general-purpose electronics. Available in high voltage ratings up to 1200V and temperature ratings up to 125°C, they are widely used in lighting systems and consumer electronics. Compact and lightweight, they support automated assembly and maintain excellent heat, humidity, and solvent resistance.
Description
Features
- Inductive welded construction epoxy dip coated.
- Good reputation in use with consumer & industrial electronics.
- Optimum for automatic insertion due to their small size and light weight.
- Coated with epoxy resin for superior heat resistance, humidity resistance and solvent resistance.
Specifications
Specifications
| Operating Temperature | -40°C~ +85°C |
|---|---|
| Rated Voltage | 100V, 250V, 400V, 630V, 1000V, 1200V.DC |
| Capacitance Range | 0.001 ~ 0.22μF |
| Capacitance Tolerance | ±5%, ±10%, ±20% |
| Insulation Resistance | 0.1μF ≤30,000MΩ min, >0.1μF >15000MΩ |
| Dissipation Factor | ≤0.1 (at 1KHz) |
| Dielectric Strength | 200% of rated voltage for 5 sec. |

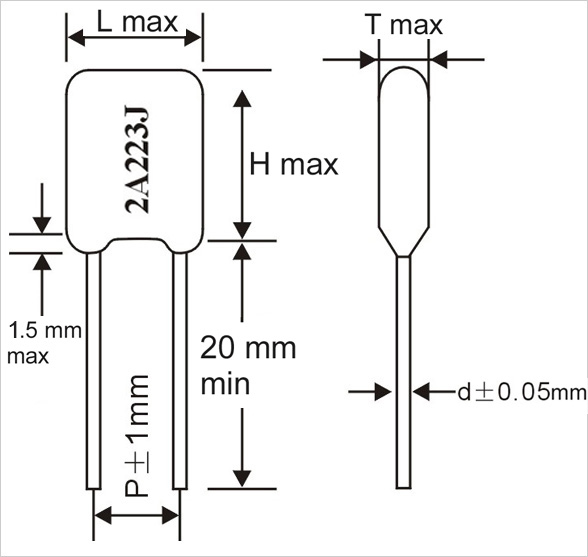

Drawing
Drawing
JFA - Mylar Polyester Film Capacitors
