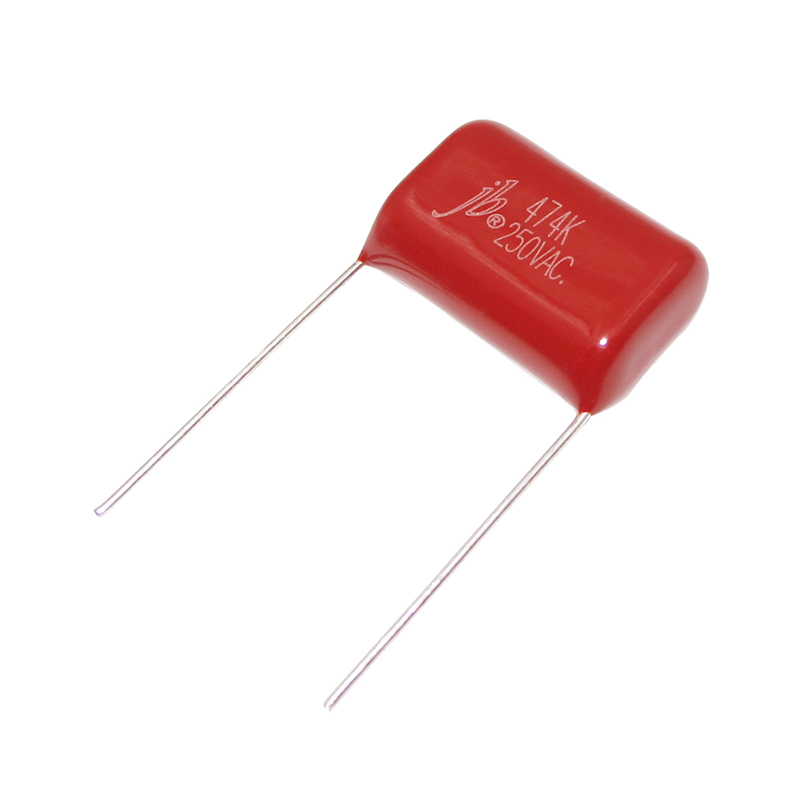

JFC – Metallized Polyester Film Capacitors (VAC)
JFC metallized polyester film capacitors (VAC) are engineered for AC voltage applications requiring stable performance, moisture resistance, and EMI suppression. Their self-healing design ensures high reliability, making them ideal for power supply circuits, industrial control systems, and high-frequency signal processing.
Description
Features
- Non-inductive, coated with epoxy resin or flame retardant epoxy power.
- High capacitance stability.
- High moisture resistance.
- High reliability with self-healing performance.
- Recommendable for high frequency circuit use.
- Possibility production of special specification.
- Competitive price.
Specifications
Specifications
| Operating Temperature | -40°C~ +85°C |
|---|---|
| Rated Voltage | 250V.AC |
| Capacitance Range | 0.01 ~ 1.5 μF |
| Capacitance Tolerance | ±5%, ±10%, ±20% |
| Insulation Resistance | 2,000MΩ |
| Dissipation Factor | 1% max. (at 1KHz) |
| Dielectric Strength | 175% of rated voltage for 5 sec. |

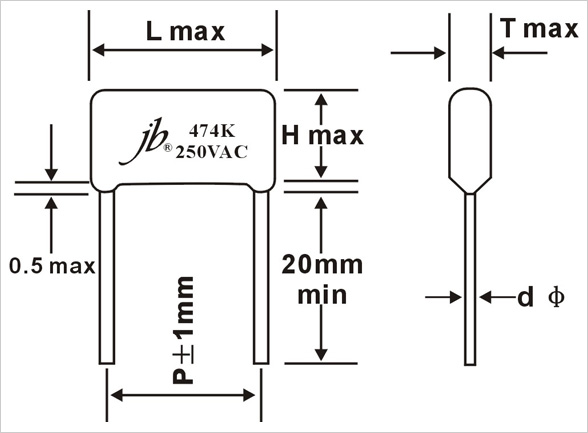

Drawing
Drawing
JFC - Metallized Polyester Film Capacitors (VAC)
