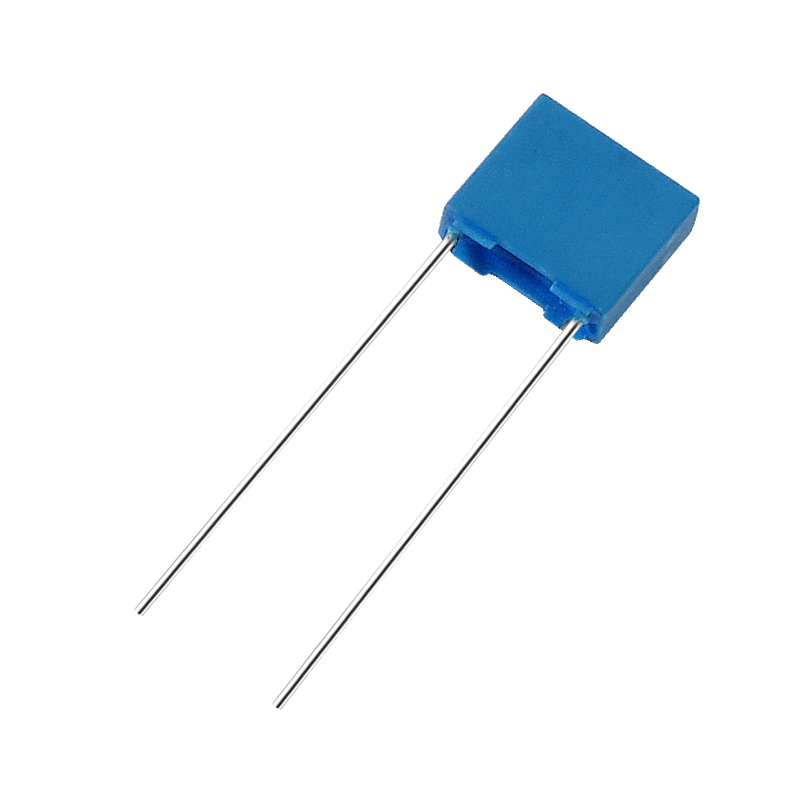

JFF – Mini Box Metallized Polyester Film Capacitors
JFF mini box metallized polyester film capacitors are compact, moisture-resistant components engineered for EMI filtering and DC pulse circuits. With high insulation resistance and flame-retardant sealing, they offer reliable performance in communication devices, TVs, and other electronic systems.
Description
Features
- Miniature size, Non-inductive metal structure
- High temperature wax sealed, good insulation performance
- Moisture-proof, flame retardant
- Low dissipation factor.
- Good self-healing effect, good stability and reliability.
- Widely used in various DC and impulse circuits, such as communication equipment, radio, TV, VCD and other electronic equipment.
Specifications
Specifications
| Operating Temperature | 40/085/21 |
|---|---|
| Rated Voltage | 50/63/100V、250V、400V、630V.DC |
| Capacitance Range | 0.001μF---2.2μF |
| Capacitance Tolerance | ±5% (J) ,±10% (K) |
| Withstand voltage | 1.6UR (5S) |
| Insulation Resistance | C≤0.33μF ,IR≥3000MΩ ;
C>0.33μF, IR*C≥1000MΩ*UF (20°C, 1min) |
| Dissipation Factor | ≤0.8% (20°C, 1KHz) |

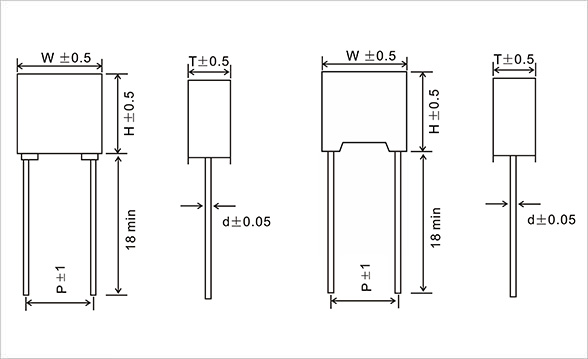

Drawing
Drawing
JFF - Mini Box Metallized Polyester Film Capacitors
