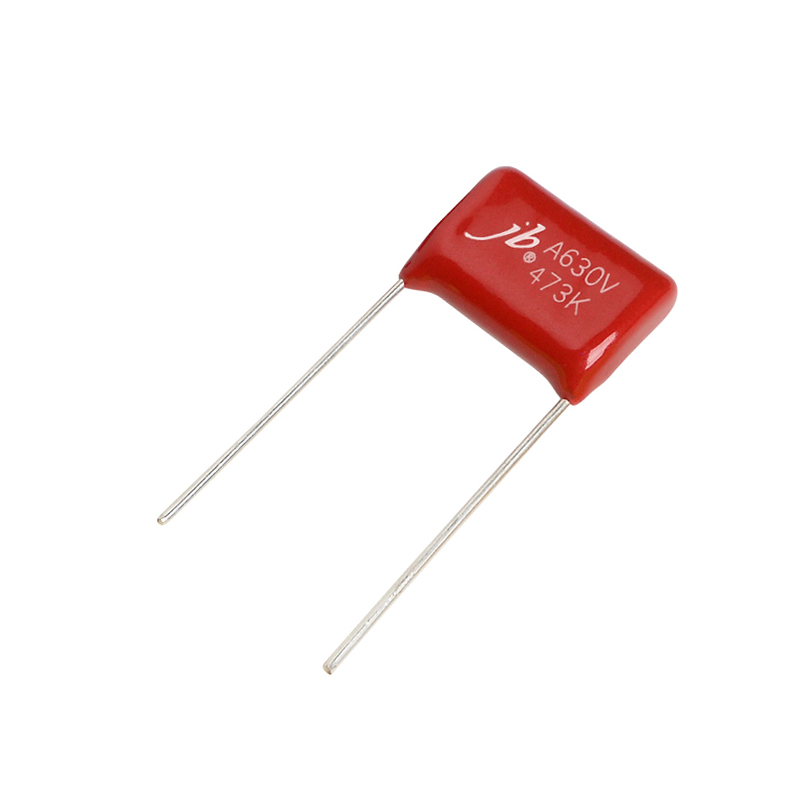

JFLA – Dipped Metallized Polypropylene Film Capacitors For Capacitive Divider
Suitable for applications in series with the 100~240Vac mains, such as small power LED driver modules, small household electrical appliances control panels (electric kettle, electric cooker, coffee machine, hair straightener, etc.), thermostats, and replacing transformers. Widely used in LC resonant circuits, high-frequency, high-current situations. The following are the features, specifications, and drawing of our Metallized Polypropylene Film Capacitors.
Description
Features
- Metallized polypropylene film, non-inductive wound construction
- Good self-healing properties, withstanding surge voltage stressing.
- Long stability of capacitance.
- Good properties in damp environment.
- Flame resistant epoxy resin powder coating (UL94/V-0).
Specifications
Specifications
| Operating Temperature | -40°C~ +85°C |
|---|---|
| Rated Voltage | 400V(230VAC)、630V(275VAC/305VAC/310VAC) |
| Capacitance Range | 0.01 ~ 10.0μF |
| Capacitance Tolerance | ±5%, ±10%, ±20% |
| Insulation Resistance | UR>100V C≤0.33uF IR ≥25000MΩ,C>0.33uF IR ≥7500s UR<100V C≤0.33uF IR ≥12500MΩ,C>0.33uF IR ≥3750s |
| Dissipation Factor | ≤0.002 (at 1KHz) (typical 0.001 max) |

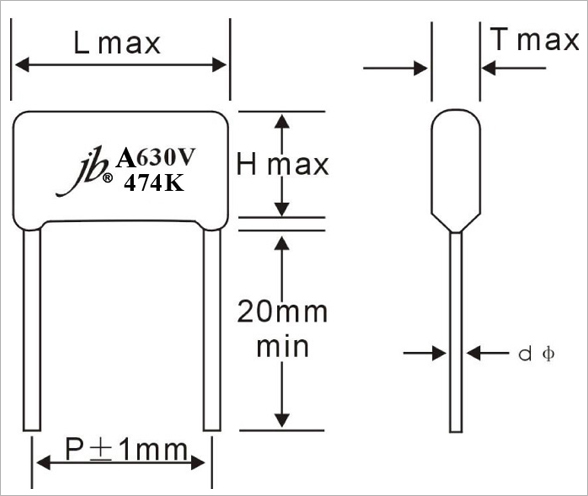

Drawing
Drawing
