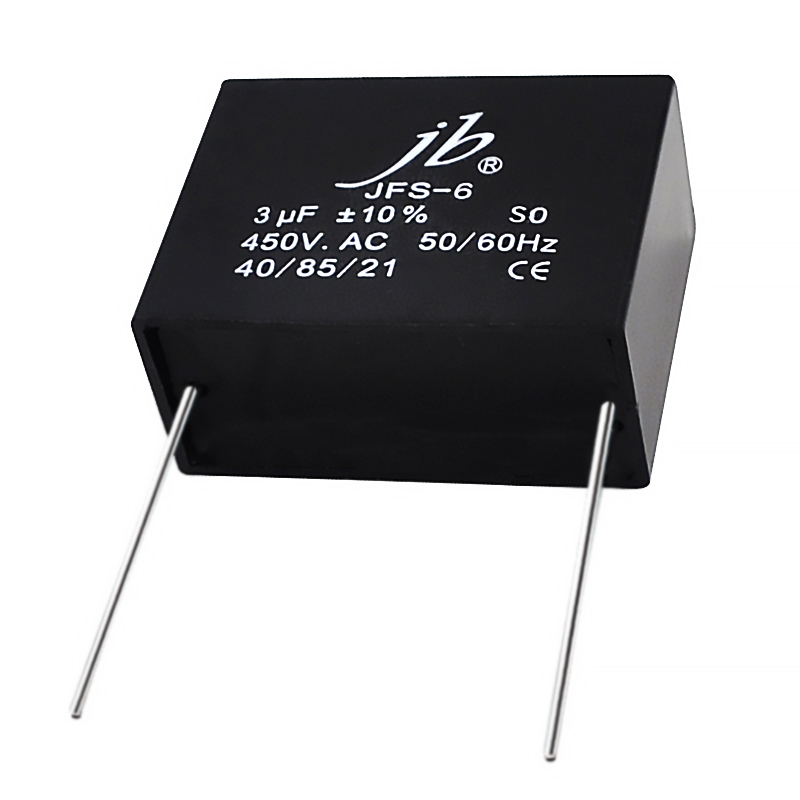

JFS – CBB61 Box Shape and Plastics Case Motor Capacitors
jb Capacitors’ JFS Series CBB61 motor capacitors are designed for AC motor running applications, offering a compact box shape, metalized film construction, and plastic casing. These CBB61 motor capacitors deliver high insulation resistance, low dissipation factor, and excellent durability. Engineered for frequency stability and long-term reliability, they are ideal for fan motors, pumps, and other electrical devices demanding consistent performance under continuous operation.
Description
Features
- Metalized film with precise quality control for electrical apparatus.
- Low Dissipation Factor (D.F.), resulting in lower temperature rise.
- High Insulation Resistance (I.R.) in a compact size.
- High safety & reliability.
- Durability and stable frequency characteristics.
Specifications
Specifications
| Operating Condition | -40℃ ~ +85℃ | |
|---|---|---|
| Capacitance Range | 1µF ~ 20µF (JFS-B~D, JFS-5~7, JFS-9) | |
| Capacitance Tolerance | ±5% (J), ±10% (K) | |
| Rated Voltage | 250V, 450V (AC) | |
| Withstand Voltage | AC ≥ 2UR, 2S (Imax ≤ 1.3 InA) | |
| Dissipation Factor | ≤0.003 at 1KHz (JFS-B~D, JFS-5~7, JFS-9) | |
| Insulation Resistance | ≥3000S | |
