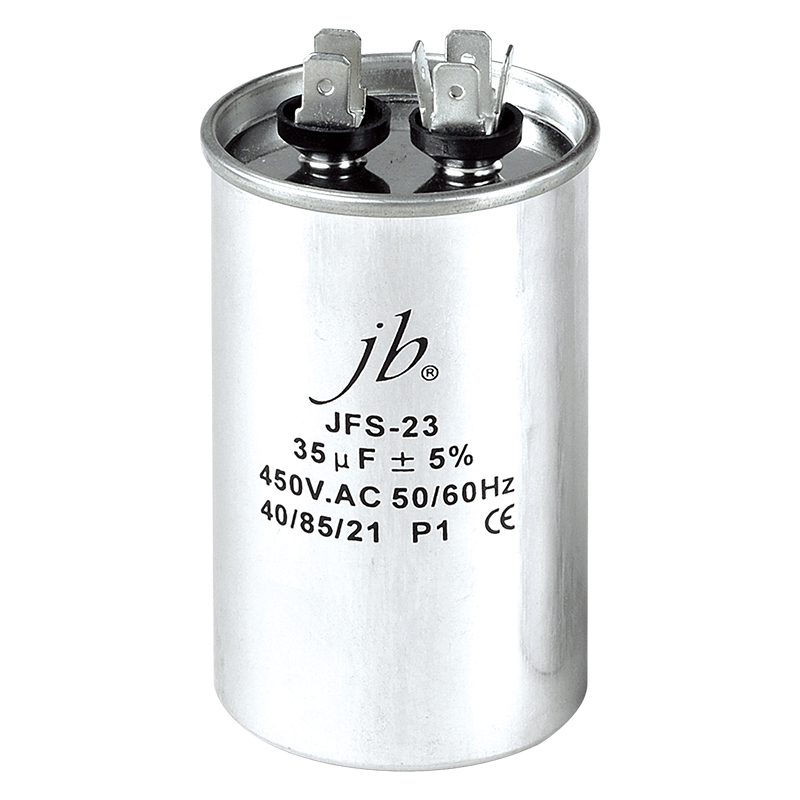

JFS – CBB65 Round Shape and Aluminum Case Motor Capacitors
jb Capacitors’ JFS Series CBB65 motor capacitors are built with a round aluminum case and metallized film construction for superior heat dissipation and reliability. These CBB65 motor capacitors provide low dissipation factor, high insulation resistance, and excellent self-healing properties. With strong over-current tolerance and long operational life, they are ideal for compressors, HVAC systems, and other demanding motor running applications that require consistent performance and high safety standards.
Description
Features
- Low Dissipation Factor (D.F.) with good self-healing characteristics.
- High Insulation Resistance (I.R.).
- High safety & reliability.
- Strong anti-striking current and over-current capacity.
Specifications
Specifications
| Operating Condition | -40℃ ~ +85℃ | |
|---|---|---|
| Capacitance Range | 2µF ~ 100µF (JFS-22~26) | |
| Capacitance Tolerance | ±5% (J), ±10% (K) | |
| Rated Voltage | 370V, 450V (AC) | |
| Dissipation Factor | ≤0.004 at 100Hz (JFS-22~26) | |
| Withstand Voltage (Between Terminals) | 2Un, 2s | |
| Withstand Voltage (Between Terminal and Case) | 2.2KV, 2s | |
