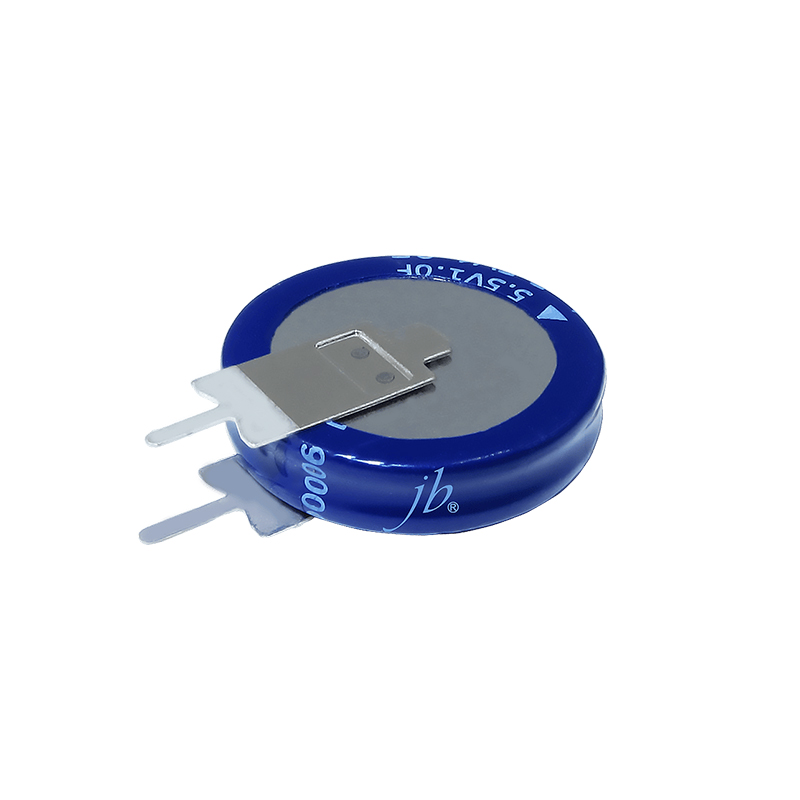

JGA – 5.5V Standard Coin Type Super Capacitors
JGA series standard coin type super capacitors offer a 5.5V rating with compact size and large capacitance. These components are ideal for low-profile applications requiring reliable backup energy.
With excellent stability and space-saving design, they are commonly used in real-time clocks (RTC), memory backup systems, and consumer electronics where consistent power retention is critical.
Description
Features
- Standard coin-type
- Small-sized, large capacity
Specifications
Specifications
| Rated voltage VR | 5.5V |
|---|---|
| Surge voltage | 5.8V |
| Capacity range | 0.1F~1.5F |
| Operating temperature range | -25~ +70℃ |
| Product life | Normal temperature cycle life：25℃, 500,000 cycles between VR and 1/2VR , Capacity attenuation≤30% , ESR change≤4 times. |
| High temperature endurance life：70℃,maintain VR, 1000 hours. Capacity attenuation≤30% , ESR change≤4 times. |

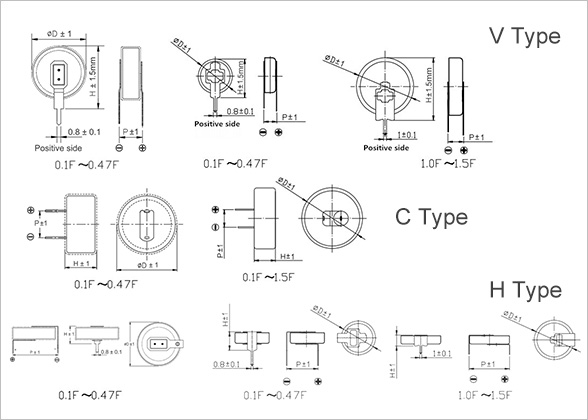

Drawing
Drawing
