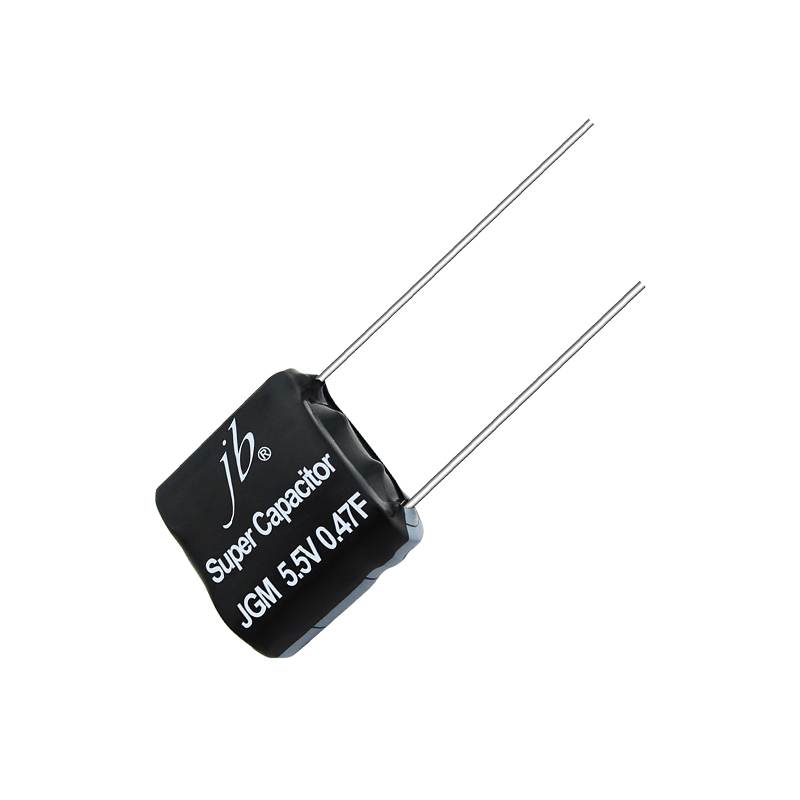

JGM – 5.5V 7.5V Combined Type Super Capacitors
JGM series combined type super capacitors are available in 5.5V and 7.5V variants, delivering standard power support with low internal resistance and compact design. These capacitors provide reliable energy storage for intermittent power supply and backup applications.
They are suitable for smart meters, memory backup, emergency power hold-up systems, and other devices that require moderate power retention and high cycle life. Pb-free and RoHS compliant for global compliance.
Specifications
Specifications
| Series Name | JGM Series Low internal resistance Type | |
|---|---|---|
| Type Name | JGM 5R5 | JGM 7R5 |
| Rated Voltage VR | 5.5V | 7.5V |
| Surge Voltage | 5.8V | 7.9V |
| Capacity Range | 0.1F~5F | 0.1F~3.3F |
| Operating Temperature Range | -40~ +70℃ | |
| Product Life | Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR , Capacity attenuation≤30% , ESR change≤4 times. | |
| High temperature endurance life：Maximum temperature retention VR，1000 hours. Capacity attenuation≤30%, ESR change≤4 times. | ||

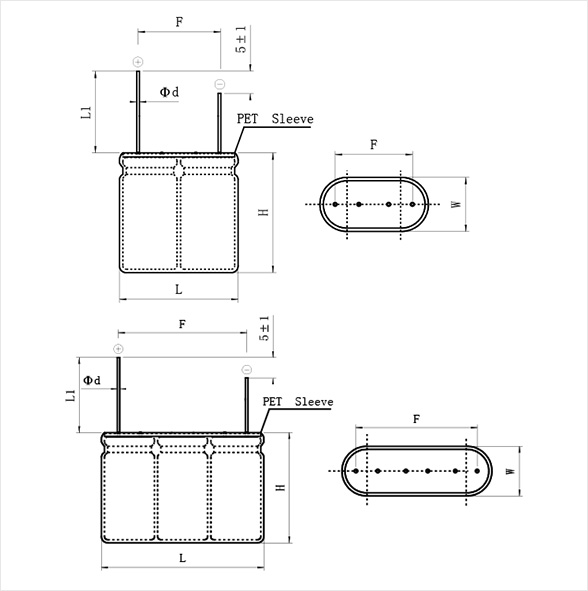

Drawing
Drawing
JGM - 5.5V 7.5V Combined Type Super Capacitors
