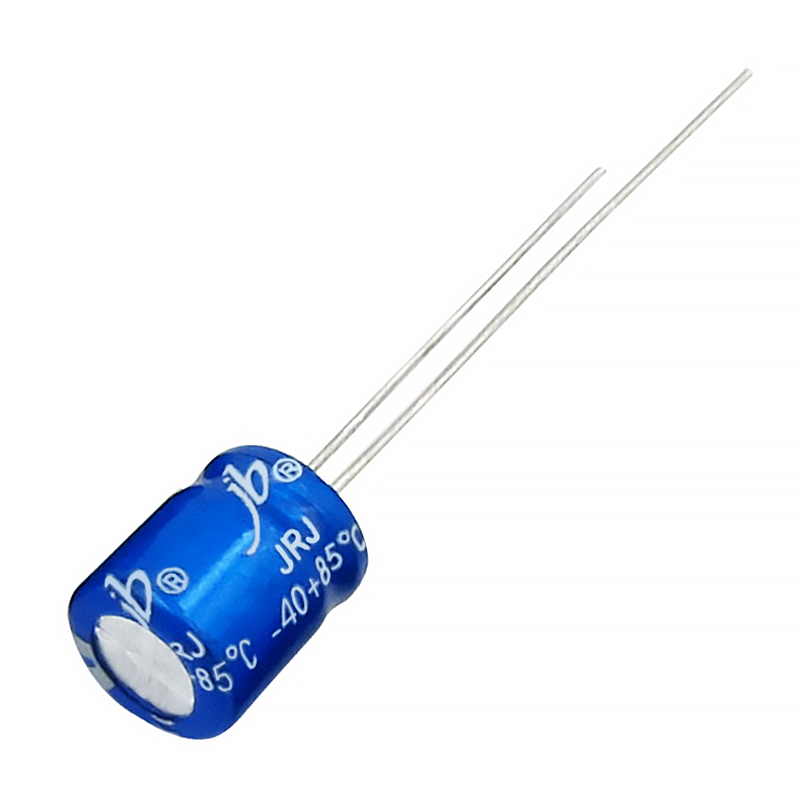

JRJ – 1000H at 85°C, Radial Aluminum Electrolytic Capacitors, 7mm Height (discontinued)
jb Capacitors’ JRJ series radial aluminum electrolytic capacitors are designed with a compact 7mm height and optimized for stable ripple current performance. Featuring a 1,000-hour lifespan at 85°C, this series is suitable for compact power applications and general-purpose circuits.
The JRJ capacitors provide excellent reliability in space-constrained designs, with RoHS compliance and consistent electrical characteristics. A solid choice for engineers prioritizing size efficiency and dependable performance.
Description
Features
- Load life of 1000 hours at 85°C
- L:7mm standard products
- Excellent Ripple Current Capability
- RoHS Directive Compliant
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40℃~+85℃ |
| Capacitance Tolerance (25°C, 120Hz) | ±20% |
| Leakage Current (μA) | ≤0.01CV or 3μA whichever is greater, (at 20℃, after 2 minutes) C: Nominal Capacitance (μF) V: Rated Voltage (V) |
Drawing
