JSX – Superior Metallized Polypropylene Film Capacitors – Axial

jb Capacitors’ JSX Series Axial Metallized Polypropylene Film Capacitors are designed for high-frequency pulse, audio signal processing, and AC line filtering. Featuring tight capacitance tolerance (±3% / ±5%), very low ESR, and low dielectric absorption, JSX capacitors deliver stable and reliable performance in demanding conditions. Available in capacitance values from 0.0022µF to 15µF and voltage ratings from 250V to 2000V DC, they are ideal for professional audio, switching circuits, and industrial electronics.

Description

Features

  • Quick transient design
  • High Precise Capacitance ±3%, ±5%
  • Very Low Dielectric absorption factor
  • Very Low Dissipation factor
  • Very Low ESR
  • Very Low Inductance
  • Excellent handling of high current audio pulses
Specifications

Specifications

Passive flammability GB10191-88 IEC384-16
Operating temperature -55℃~+85℃
Capacitance range 0.1~100uF
Capacitance tolerance ±3%(E)、±5%(J) 1KHz
Rated voltage 250V、400V、630V.DC
Withstand voltage 1.6VR 5S
Dissipation factor ≤0.0010 1KHz
Insulate the electric resistance CR≤0.33μF, I.R≥15,000MΩ
CR>0.33μF, I.R≥5,000S
Leads Diameter 0.8、1.0 Tinned Copper Wire

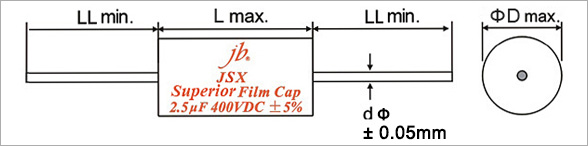

Drawing

Drawing

JSX - Superior Metallized Polypropylene Film Capacitors – Axial (Hot)
JSX - Superior Metallized Polypropylene Film Capacitors – Axial Drawing
