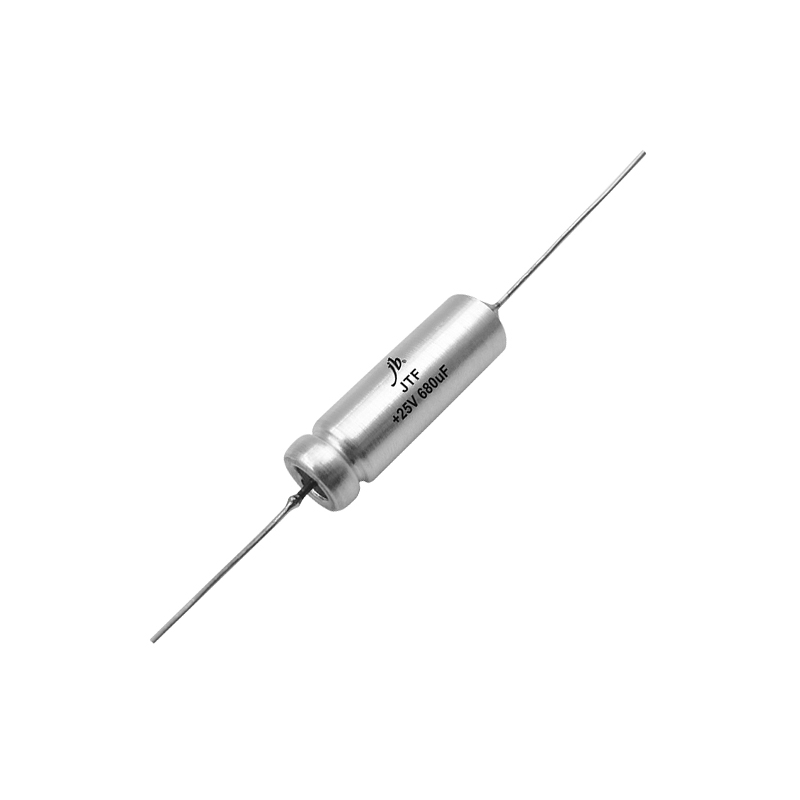

JTF – Axial Wet Tantalum Capacitors

The JTF Axial Wet Tantalum Capacitor features a hermetically sealed silver case, axial-lead design, and flame-retardant insulation sleeve. With low dissipation factor (DF) and low DC leakage (DCL), it provides excellent performance and long-term reliability.

Designed for use in telecommunication systems, DC and impulse circuits, and other precision electronics, JTF capacitors are compact, durable, and capable of stable operation up to +125°C.

Description

Features

  • Silver case encapsulation, Hermitically-sealed, Tubular, Axial-lead, With insulation sleeve, Heteropolarity.
  • Stable in Electrical Characteristics, High reliability, Low DF & DCL.
  • Applying in Telecommunications, such Electrical Equipments with DC & impulse Circuit.
Specifications

Specifications

Technical Data All technical data relate to an ambient temperature of +25°C.
Capacitance Tolerance ±20%, ±10%
Temperature Range -55°C to +125°C
DC Leakage I0 ≤ 0.008CRUR (μA) or 1μA (whichever is greater)
