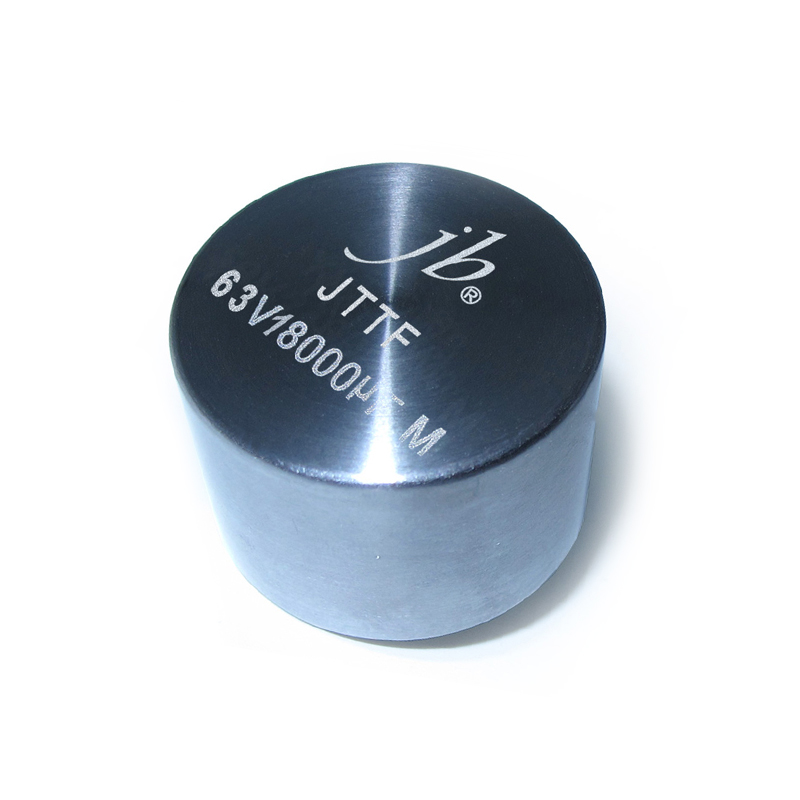

JTTF – Hybrid Tantalum Capacitors Radial-lead, Heteropolarity, screws

The JTTF series hybrid tantalum capacitors feature a radial-lead, hermetically sealed design with screw terminals for secure mechanical fixing. Designed for high ripple current and long life, they deliver exceptional electrical stability and capacitance density.

With performance exceeding the JTTE series, JTTF capacitors are optimized for demanding environments like power supplies, industrial control, and automotive systems requiring high reliability.

Description

Features

  • Tantalum case, Hermetically Sealed, Cylindrical, Radial-lead, Heteropolarity, with screws, convenient to fix.
  • Commingled by Electrolytic Tantalum Capacitor and Electrochemical Capacitor, Small size, Super Capacitance.
  • Stable in Electrical Performances, High Reliability, Long life-span, Maximum in the Density of Capacitance and Energy, Nominal Capacitance is higher than JTTE series.
  • Built-in as battery in Energy-conversed-circuit & Power-pulsed-circuit, functioned as filtering, storage energy, time-delay circuit.
Specifications

Specifications

Operating Temperature -55°C to +125°C (to +125°C, with rated voltage derating)
Storage Temperature -62°C ~ +130°C
Capacitance Tolerance
  • Q: (-10%~+30%)
  • K: (±10%)
  • M: (±20%)
