JYC – 1KV- 15KV DC High Voltage Ceramic Capacitors

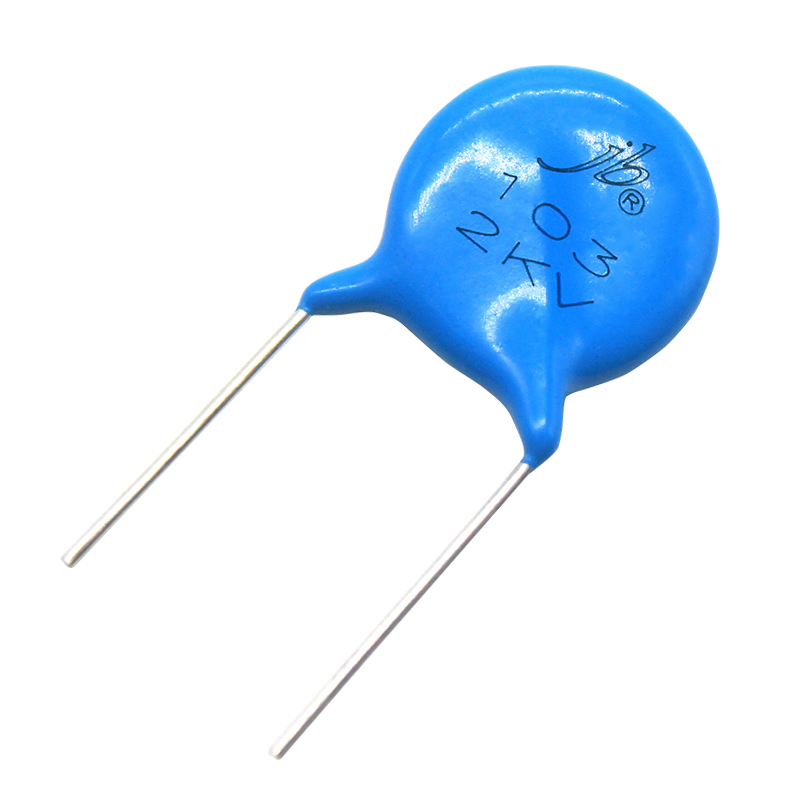

The JYC series from jb Capacitors provides high-quality high voltage ceramic capacitors with rated working voltages from 1KV to 15KV DC. Designed with a blue epoxy resin coating for durability, these radial-leaded single-layer disc capacitors deliver stable performance and high reliability across a wide operating temperature range (-25°C to +85°C). Ideal for use in coupling and bypass circuits, the JYC series supports both standard and customized configurations for a variety of high-voltage applications.
Description
Features
- Operating Condition Range -25°C to +85°C.
- Rated Working Voltage 1KV – 15KV DC.
- Use for coupling, and by-pass circuit there are a stable and high reliability products.
Specifications
Specifications
| Operating Condition | -25°C~ +85°C |
|---|---|
| Rated Working Voltage | 1KV – 15KV DC |
| Capacitance Range | 100pF – 10,000pF |
| Test Voltage | UR≤500V, U=2.5UR； UR>500V≤6KV, U=1.5UR+500V； UR>6KV≤15KV, U=1.5UR |
| Insulation Resistance | YL/SL/NPO:≥10GΩ Y5R/Y5P/Y5U/Y5V/Y5T: CR≤25nF,≥4000MΩ CR＞25nF，Rj•CR≥100s |

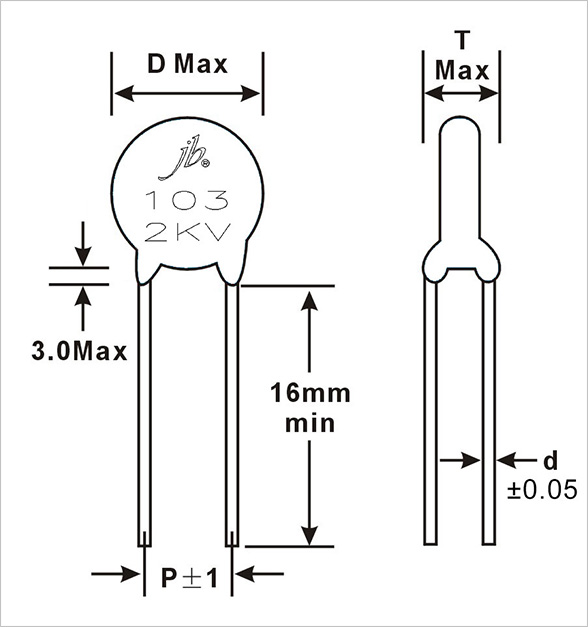

Drawing
Drawing
JYC - 1KV- 15KV DC High Voltage Ceramic Capacitors
