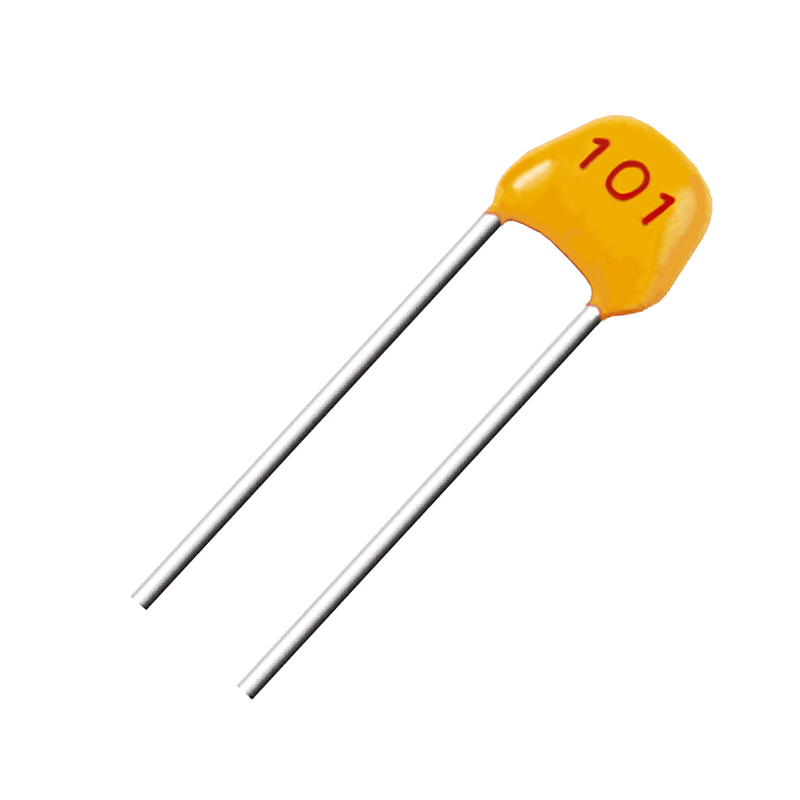

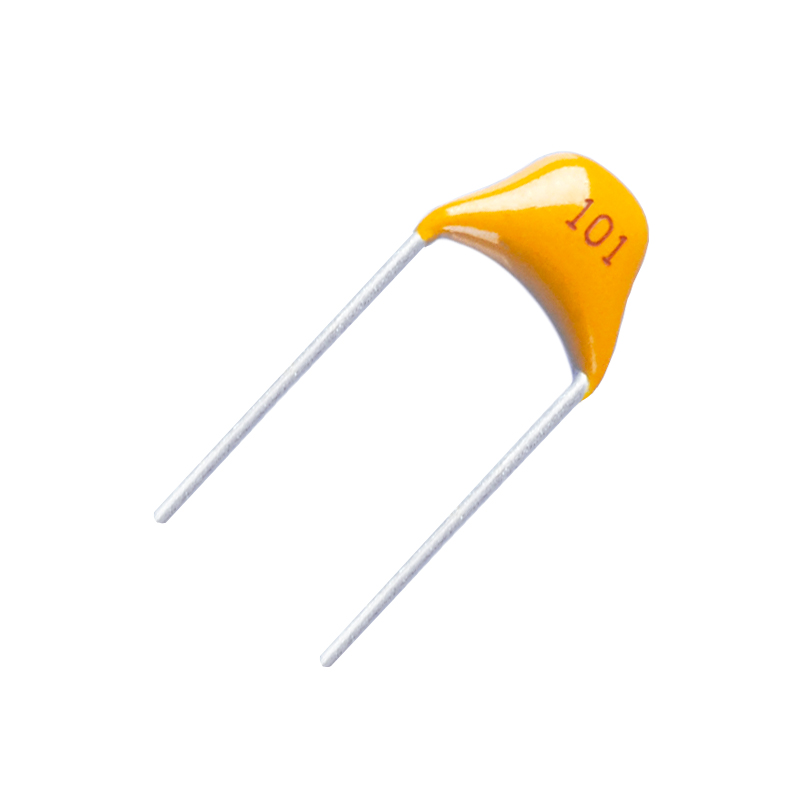

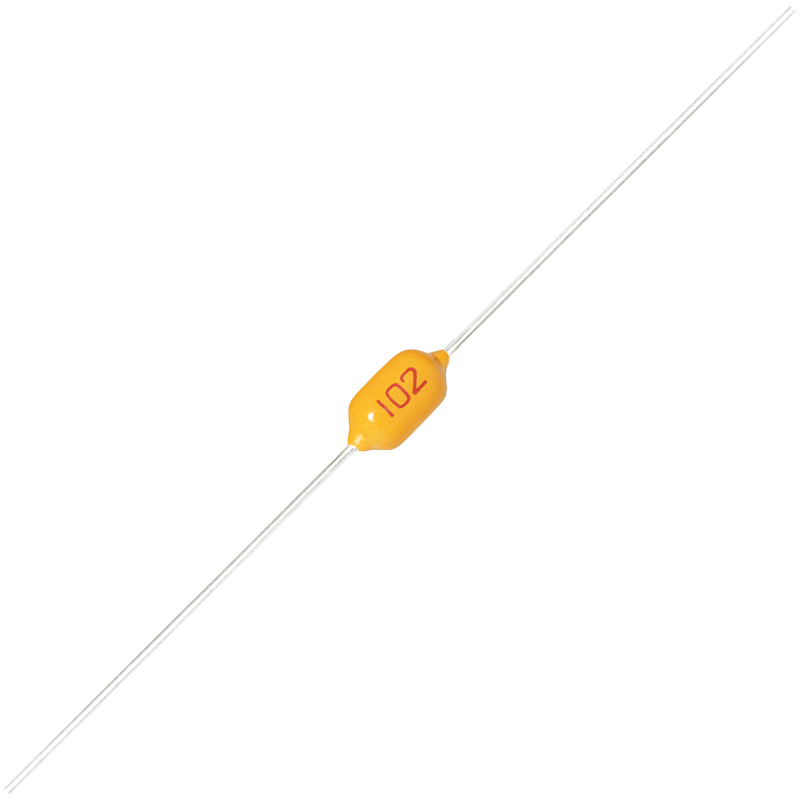

JYM – Multilayer (Mono) Ceramic Capacitors
jb Capacitors’ JYM series multilayer (mono) ceramic capacitors are coated with high-quality epoxy resin, providing outstanding humidity resistance and protection during soldering and cleaning. These miniature capacitors feature a wide capacitance range, consistent performance, and are available in tape-and-reel packaging for automated placement. Designed to meet industry-standard sizes with various lead spacings, the JYM series is ideal for compact, high-density PCB designs in demanding electronic applications.
Description
Features
- Coating by epoxy resin, creates the excellent humidity resistance and prevents body from damaging during soldering and washing.
- Miniature size, wide capacitance, tape and reel packaging available for auto-placement.
- Industry standard size and various load spacing available.
Specifications
Specifications
| T.C | NPO/COG | X7R(B) | Y5V(Y/F) | Z5U(E) |
|---|---|---|---|---|
| Dielectric type | Stable Class I Dielectric | Stable Class II Dielectric | ||
| Capacitance range | 1pF~10nF | 100pF~5uF | 1nF~14.7uf | |
| Operating temperature | 0±30PPm/c -55℃~+125℃ |
±15% -55℃~+125℃ |
+30%~-80% -25℃~+85℃ |
+22%~-56% -10℃~+85℃ |

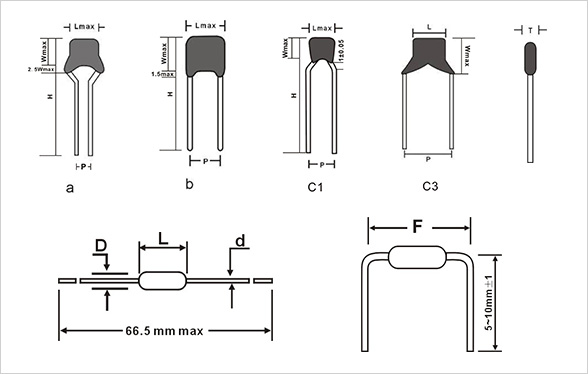

Drawing
Drawing
JYM - Multilayer (Mono) Ceramic Capacitors
