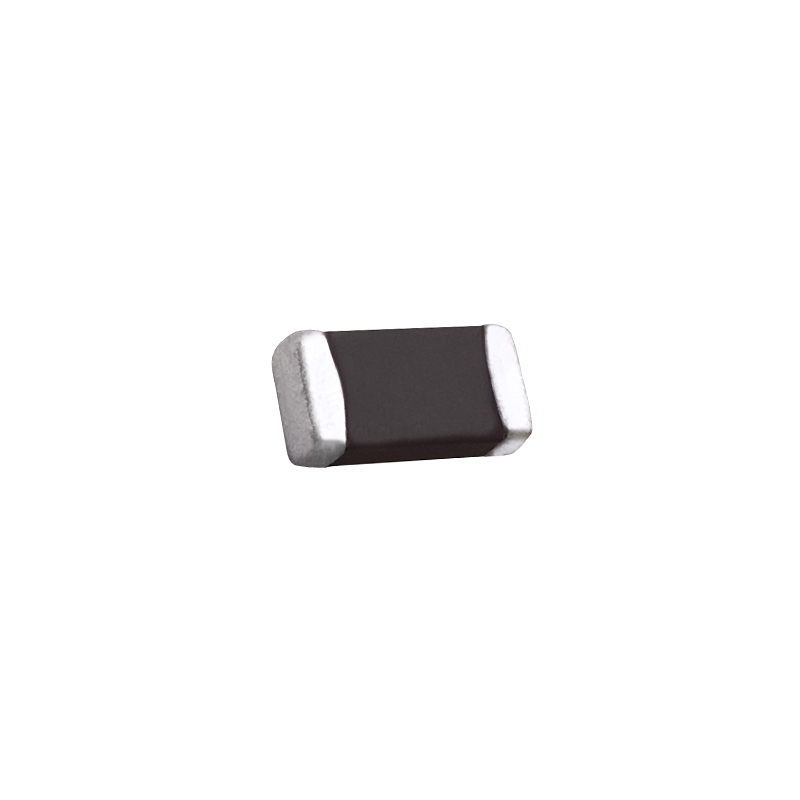

JYT – SMD Ceramic Chip Capacitors (High Voltage)
The JYT series SMD ceramic capacitors from jb Capacitors are designed for high-voltage applications, offering excellent breakdown voltage, low dissipation factor (DF), and minimal leakage current. These compact multilayer ceramic capacitors support reflow, wave, and hand soldering methods, and feature Ni/Sn plated terminations. Ideal for analog/digital modems, LAN/WAN interfaces, DC-DC converters, voltage multipliers, lighting ballasts, and backlight inverters, JYT capacitors deliver reliable performance in demanding high-frequency circuits.
Description
Features
- Excellent Break down voltage, low DF
- Suit to re-flow soldering, wave soldering, hand soldering
- a surface-mount high-voltage Multilayer Ceramic Capacitor with Ni and Sn plated terminations.
- can withstand higher voltage and lower leakage characteristics than typical surface mount filters.
- smaller, thinner, lighter,and can easily be placed on a PCB.
Specifications
Specifications
| Dielectris & Values | NPO X7R X5R X7T X7S X6S Y5V consult product pages of catalog for cap ranges and voltage rating |
|---|---|
| Terminations | Tin / Nickel |
| Voltage | 100, 200, 250, 500, 630, 1000, 2000 VDC |
| Capacitance | 0.2pF ~ 4.7uF |
| Tolerance | ±0.1pF ~ +80-20% |
| Operating Temperature Range | NPO, X7R, X7T, X7S: -55 ~ +125℃；X6S: -55 ~ +105℃； X5R: -55 ~ +85℃；Y5V: -30 ~ +85℃ |
