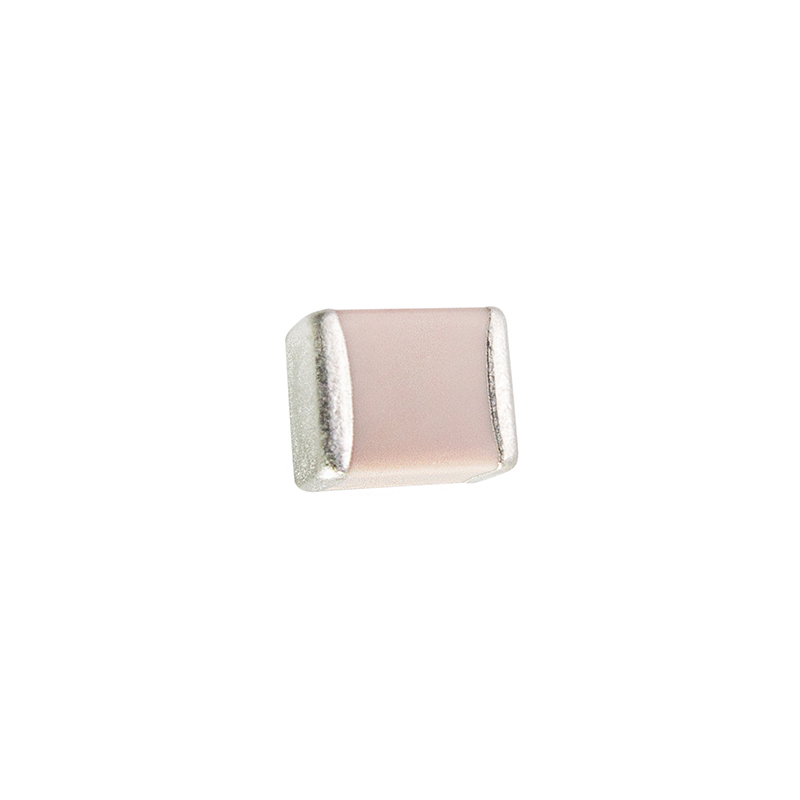

JYV – SMD Radio Frequency High Q (Non-magnetic) Multilayer Chip Ceramic Capacitors
The JYV series from jb Capacitors features high Q, non-magnetic multilayer chip ceramic capacitors engineered for radio frequency applications. Designed with low ESR and high capacitance stability, these capacitors perform reliably across VHF and microwave bands. Ideal for RF modules, amplifier circuits, and hybrid integrated systems, JYV capacitors meet stringent demands in high-frequency and high-reliability applications.
Description
Features
- Size specifications are standardized and suitable for surface mount components in hybrid integrated circuits or printed circuits.
- High Q value, low ESR, high reliability.
- Low loss, high capacitance stability, high operating frequency.
- Suitable for high-frequency circuits, VHF-microwave bands, RF and amplification circuits in various equipment.
Specifications
Specifications
| TEMPERATURE COEFFICIENT | COG: 0±30ppm/℃ |
|---|---|
| CAPACITANCE SHIFT | No more than ±0.2% or ±0.05pF, whichever is larger |
| QUALITY FACTOR (Q VALUE) | Greater than 2000 at 1MHz |
| INSULATION RESISTANCE | At 20℃: ≥100000MΩ |
| OPERATING TEMPERATURE | -55℃ to 125℃ |
Drawing
