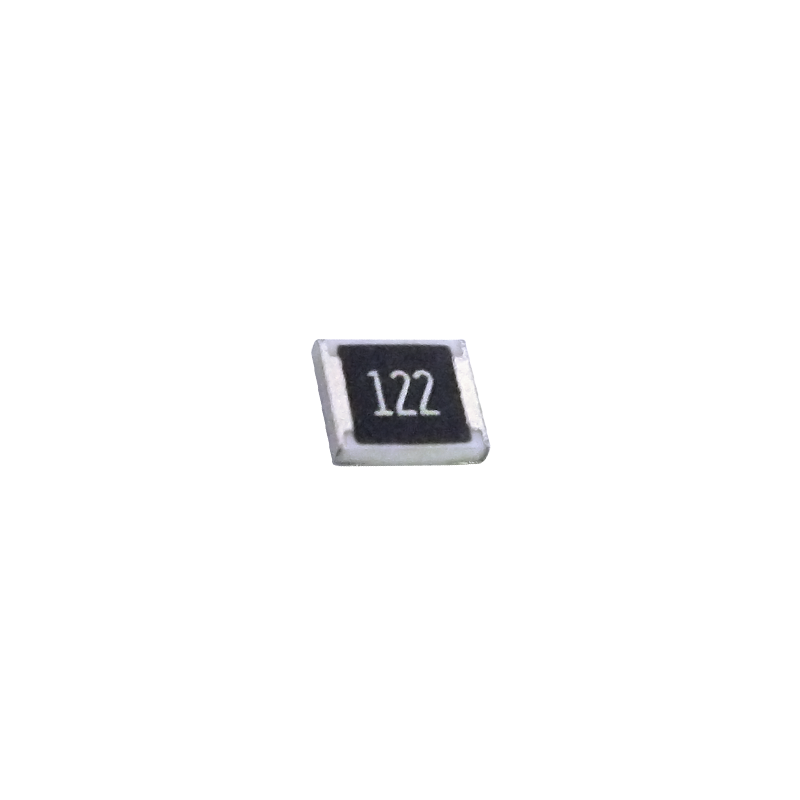

JZC – Thick Film Chip Resistors
Thick Film Chip Resistors from jb Capacitors offer high reliability, compact size, and stable performance for consumer electronics, industrial controls, and household appliances. The JZC series provides precise resistance values, low noise, and consistent operation in demanding environments.
Featuring advanced thick film technology, these resistors have excellent moisture resistance, anti-oxidation capability, and heat tolerance. Their small footprint supports high-density PCB layouts while maintaining strong mechanical strength and excellent solderability.
Description
Features
- Small size and light weight
- High reliability and stability
- High performance of moisture-proof, anti-oxidation, and heat resistance
- Excellent solderability and mechanical strength
- Compliant with RoHS requirements
Specifications
Specifications
| Power Rating | 1/16W, 1/10W, 1/8W, 1/4W, 1/2W |
|---|---|
| Tolerance | ±1%, ±5% |
| Resistance Range | 1Ω ~ 10MΩ |
| Temperature Coefficient | ±100ppm/°C, ±200ppm/°C |
| Max. Working Voltage | 50V ~ 200V (depending on size) |
| Operating Temperature | -55°C ~ +155°C |
| Standard | RoHS Compliant |
