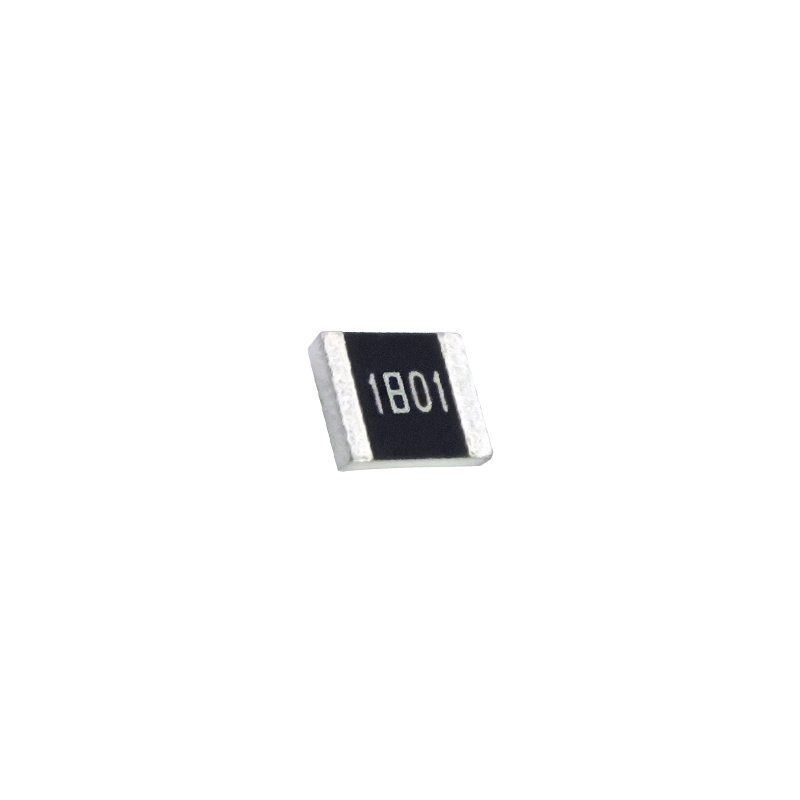

JZQ – Automotive Thick Chip Resistors
Automotive thick chip resistors from jb Capacitors meet AEC-Q200 standards, offering sulfur resistance, high reliability, and stability for automotive electronics.
Description
Features
- Automotive grade thick film chip resistors
- Compliant with AEC-Q200 requirements
- Sulfur resistant, anti-moisture, and high heat tolerance
- High reliability and stability in harsh environments
- Excellent solderability and mechanical strength
- RoHS compliant
Specifications
Specifications
| Power Rating | 1/20W ~ 1W (depending on size) |
|---|---|
| Tolerance | ±0.5%, ±1%, ±2%, ±5% |
| Resistance Range | 1Ω ~ 22MΩ (depending on size and tolerance) |
| Temperature Coefficient | ±100ppm/°C, ±200ppm/°C, -100~+300ppm/°C (0201 low R) |
| Max. Working Voltage | 25V ~ 200V (depending on size) |
| Operating Temperature | -55°C ~ +125°C (0201), -55°C ~ +155°C (others) |
| Standard | RoHS Compliant, AEC-Q200 Qualified |
