PSR - 2000H at 105°C Super Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors

PSR – 2000H at 105°C Super Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors

jb Capacitors’ PSR series radial conductive polymer aluminum solid electrolytic capacitors deliver outstanding electrical performance in compact power applications. With super low ESR at high frequencies and a load life of 2000 hours at 105°C, they support large ripple currents and are ideal for DC-DC converters, telecom, and industrial equipment. Fully RoHS compliant for eco-conscious designs.

Description

Features

Low ESR Series. Load life of 2000 hours at 105°C.
Large permissible ripple current
Super Low ESR at high frequency range
Comply with the RoHS directive.

Specifications

Operating Temperature	-55°C~ +105°C
Voltage Range	2.5V ~25V.DC
Capacitance Range	68 ~ 2200μF
Capacitance Tolerance	±20% at 120Hz, 20°C
Leakage Current(+20℃, max)	≤0.2CV (μA, after 2 minutes)

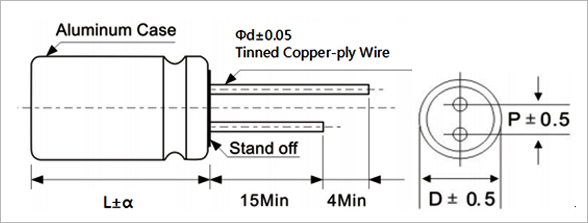

Drawing

PSR - 2000H at 105°C Super Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors
pss

PSR – 2000H at 105°C Super Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors

Features

Specifications

Drawing

JEB – 2000H at 105°C Low ESR SMD Multilayer Solid Capacitor

JCQ – 5000H at 105°C SMD Polymer Aluminum Solid Electrolytic Capacitors

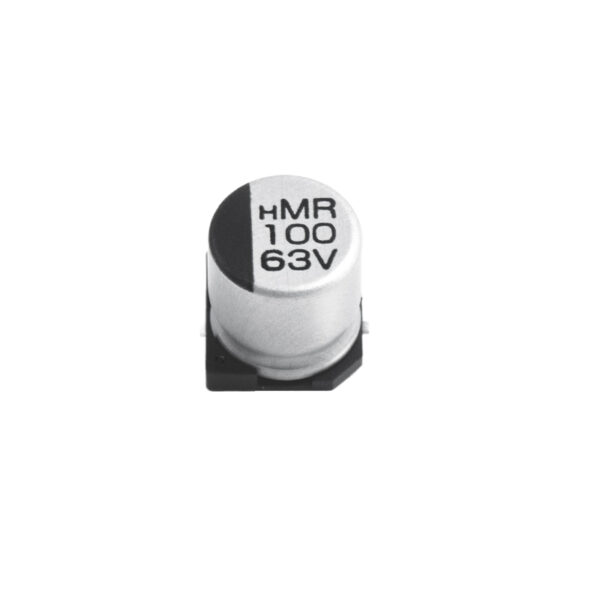

JHR – 4000H at 125°C Low ESR Conductive Polymer Hybrid Capacitors
