PSU - 2000H at 125°C High Temperature Polymer Aluminum Solid Electrolytic Capacitors

PSU – 2000H at 125°C High Temperature Polymer Aluminum Solid Electrolytic Capacitors

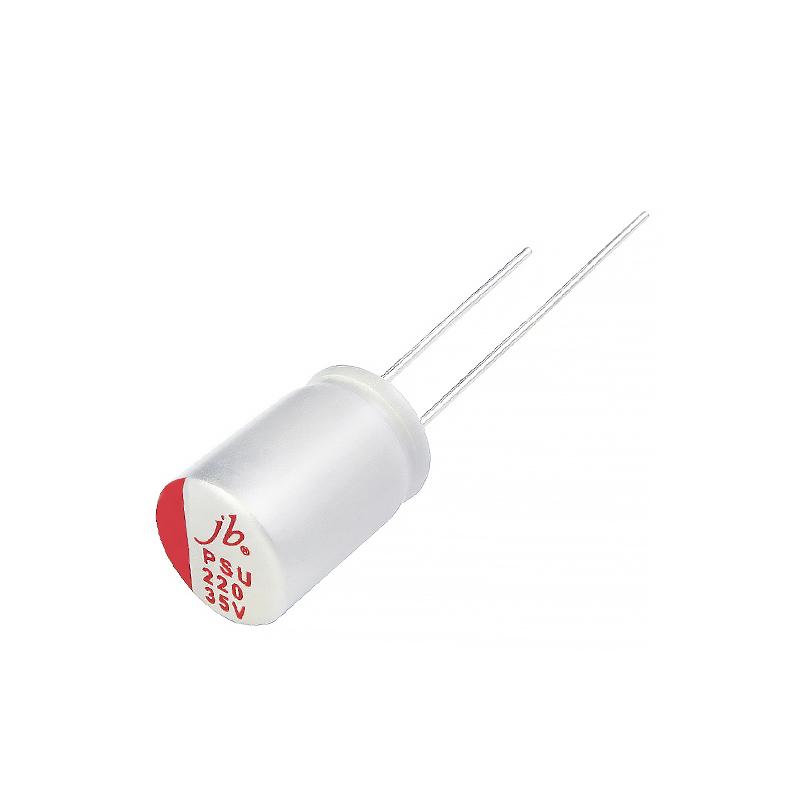

The PSU series by jb Capacitors delivers high temperature radial polymer aluminum solid electrolytic capacitors, designed for 2000 hours of operation at 125°C. These capacitors offer low ESR and support high ripple current, making them suitable for industrial, automotive, and power-intensive applications. Compliant with the RoHS directive, they ensure both performance and environmental responsibility.

Description

Features

Standard Series. Load life of 2000 hours at 125°C.
Large permissible ripple current
Low ESR at high frequency range
Comply with the RoHS directive.

Specifications

Operating Temperature	-55°C~ +125°C
Voltage Range	35V ~ 160V.DC
Capacitance Range	68~ 330μF
Capacitance Tolerance	±20% at 120Hz, 20°C
Leakage Current(+20℃, max)	≤0.2CV (μA, after 2 minutes)

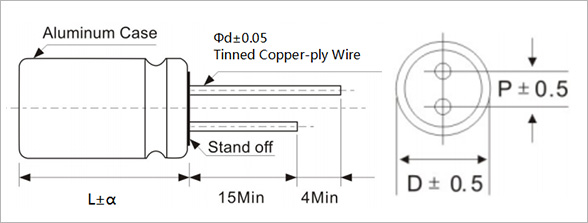

Drawing
