Optimizing Compact Circuit Reliability with High-Voltage Multilayer Solid Capacitors and Polymer Capacitors
Optimizing Compact Circuit Reliability with High-Voltage Multilayer Solid Capacitors and Polymer Capacitors
As electronic designs move toward higher voltage, smaller PCB area and higher power density, maintaining long-term circuit reliability becomes increasingly challenging. High-voltage multilayer solid capacitors and polymer capacitors address this challenge by combining low ESR, stable thermal behavior and robust solid-state construction, making them ideal for compact, reliability-critical power circuits.
For background on capacitor ESR and ripple current in power designs, see independent resources such as Texas Instruments power design guides and Analog Devices power design tutorials.
Why Compact Circuits Push Capacitors to Their Limits
Modern power and control electronics concentrate more functionality into smaller spaces. As a result, capacitors are exposed to:
- Higher operating voltages within limited PCB real estate
- Increased ripple current density from fast-switching power stages
- Elevated ambient and self-heating temperatures
- Long service-life expectations with minimal maintenance
Under these conditions, conventional liquid electrolytic capacitors may experience faster degradation. Solid polymer and multilayer solid capacitor technologies are specifically designed to mitigate these risks.
General design practices for high-density power stages are also discussed in independent application notes such as TI SLVA series app notes and industry power layout guidelines.
How Multilayer Solid Capacitors Enhance Reliability

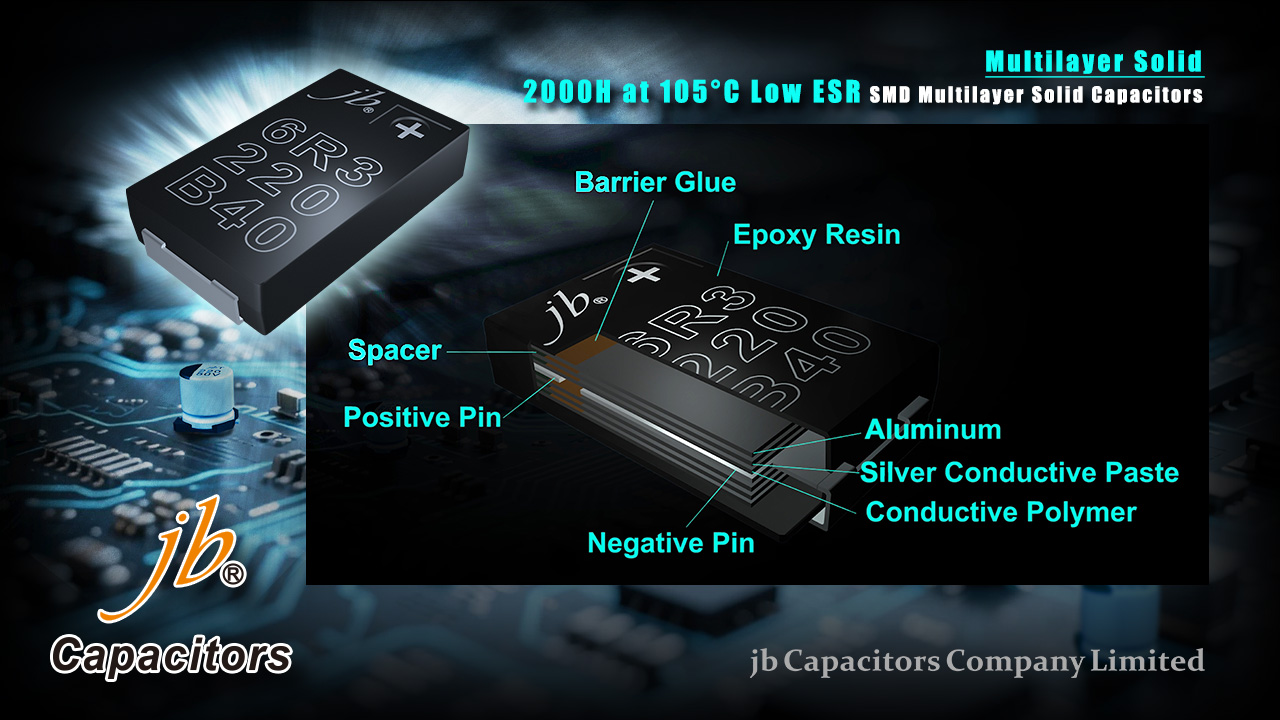

Multilayer solid capacitors use stacked internal electrodes and solid conductive polymer layers to distribute current more evenly throughout the device. This structure provides several reliability advantages:
- Lower effective ESR through parallel conductive paths
- Reduced localized heating inside the capacitor body
- Improved current sharing under dynamic load conditions
- Greater tolerance to vibration and thermal cycling
For high-voltage compact circuits, these characteristics directly translate into improved thermal stability and longer operational lifetime.
Advantages of Polymer Capacitors in High-Voltage Designs
Polymer capacitors replace liquid electrolytes with a solid conductive polymer, which fundamentally changes how the component behaves over time and temperature:
- Stable ESR across wide temperature and frequency ranges
- No electrolyte evaporation or dry-out failure mode
- High ripple current capability for switching converters
- Predictable electrical performance throughout the product lifecycle
These properties make polymer capacitors especially suitable for compact high-voltage power rails where thermal margin and long-term reliability are critical.
For an independent overview of polymer vs. liquid electrolytic behavior, see generic explanations in electronics design resources such as All About Circuits technical articles.
Design Tips for Maximizing Circuit Reliability
When integrating high-voltage multilayer solid and polymer capacitors into compact circuits, engineers typically consider:
- Voltage derating to reduce electrical stress over lifetime
- Thermal placement near low-impedance ground planes for heat dissipation
- Parallel capacitor arrays to further lower ESR and distribute ripple current
- Impedance matching with MLCCs for wideband noise suppression
From a procurement perspective, using standardized multilayer polymer capacitor families also helps simplify BOM management and long-term sourcing.
General PCB layout and reliability practices are aligned with recommendations from independent bodies such as IPC (Printed Circuit Board standards).
Typical Applications
- DC–DC converters and compact power modules
- Automotive ECUs and control electronics
- Industrial automation and control systems
- IoT gateways, edge devices and smart infrastructure
- High-density consumer and commercial electronics
RoHS environmental requirements for these applications are defined in regulations such as EU RoHS Directive, which many global electronics manufacturers align to.
📧 Technical consultation & sourcing support: [email protected]
Explore high-voltage multilayer solid and polymer capacitors, review internal structure insights and contact our team for design and sourcing support.
