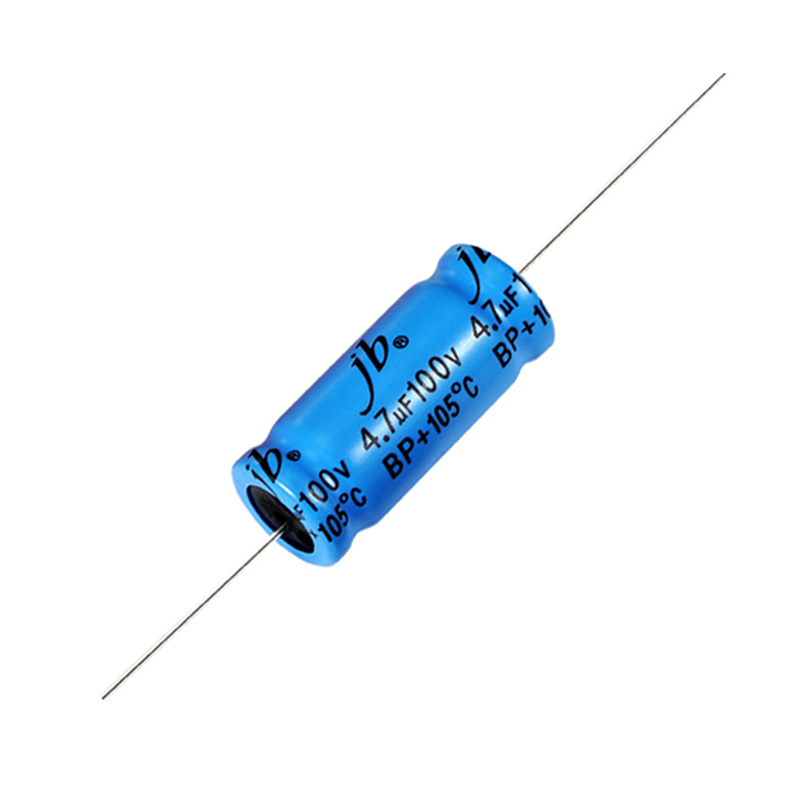

JAD – 1000H 105°C, DF at Max 5% BP Axial Aluminum Electrolytic Capacitors for Audio System
jb Capacitors’ JAD Series Bi-Polar Axial Aluminum Electrolytic Capacitors are designed specifically for audio crossover networks and high-fidelity audio systems. With a maximum dissipation factor of 5% at 1kHz, and a load life of 1000 hours at 105°C, these non-polar capacitors deliver stable, distortion-free sound performance across a wide range of frequencies. They are ideal for speaker networks, amplifiers, and automotive audio applications.
Description
Features
- Bi-Polarized
- 105℃ 1000 hours
- Low Dissipation Factor MAX 5% at 1KHz
- Specially produced for Cross-Over Networks with high fidelity audio system
- High-quality crossover non-polar aluminum electrolytic capacitors
- Product mainly used: Audio Converters and Dividers (partials), Audio amp, Automotive Electronics Products, speaker and so on
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40℃~+105℃ |
| Capacitance Tolerance | ±10% |
| Leakage Current (μA) | MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage |
| MAX Dissipation Factor | MAX 5% at 1KHz |
Drawing
