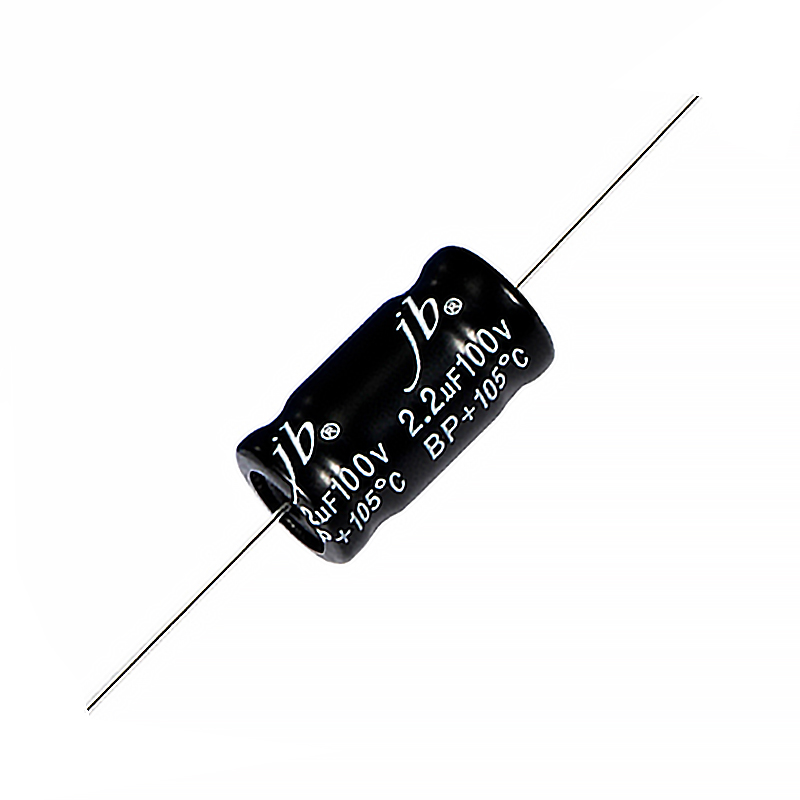

JAE – 1000H 105°C, DF at Max 10% BP Axial Aluminum Electrolytic Capacitors for Audio System
JAE series Bi-Polar Axial Aluminum Electrolytic Capacitors are engineered for high-fidelity audio systems. Rated 1000 hours at 105°C with a maximum dissipation factor of 10% at 1kHz, they provide excellent performance in crossover networks and loudspeaker circuits.
These non-polar capacitors support 50V to 100V operation, offering reliable, distortion-free signal flow. Perfect for audio-grade applications requiring stable, low-impedance behavior in compact axial form.
Description
Features
- Bi-Polarized
- 105℃ 1000 hours
- Low Dissipation Factor MAX 10% at 1KHz
- Specially produced for Cross-Over Networks with high fidelity audio system
- High-quality crossover non-polar aluminum electrolytic capacitors
- Product mainly used: Audio Converters and Dividers (partials), Audio amp, Automotive Electronics Products, speaker and so on
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40℃~+105℃ |
| Capacitance Tolerance | ±10% |
| Leakage Current (μA) | MAX. 0.03CV + 3μA After 5 minutes application of rated working voltage |
| MAX Dissipation Factor | MAX 10% at 1KHz |
Drawing
