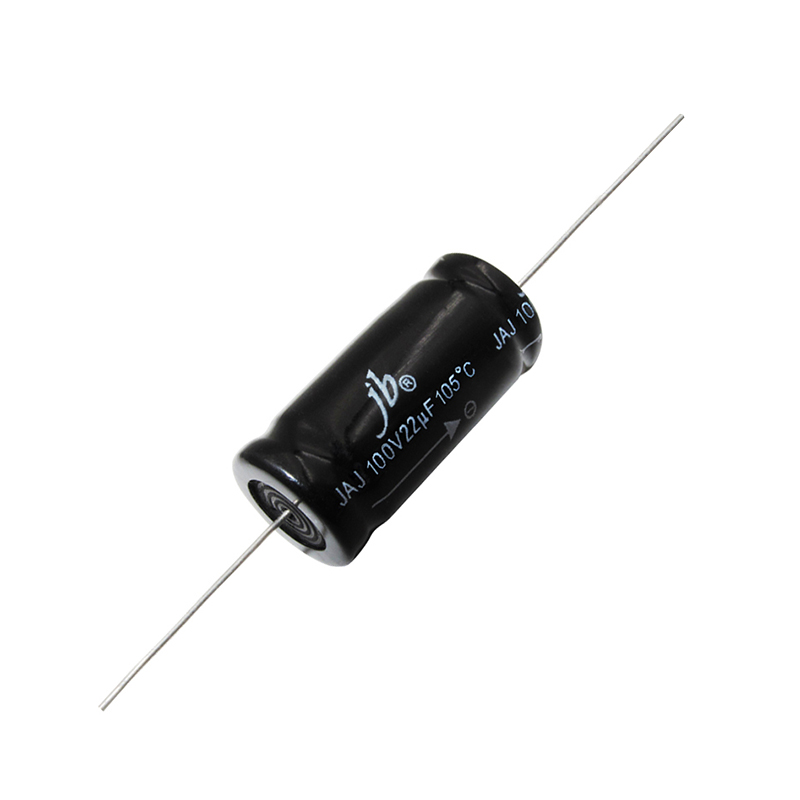

JAJ – Non-Polar AXIAL 1KHZ DF at Max 10%, 50V-100V -40°C ~ +105°C for Loudspeaker
jb Capacitors’ JAJ Series Non-Polar Axial Capacitors are designed for loudspeaker crossover networks, operating reliably at 50V to 100V with DF ≤ 10% at 1kHz. These capacitors deliver stable capacitance, low leakage, and dependable operation across a wide temperature range from -40°C to +105°C. Ideal for high-fidelity audio systems, JAJ capacitors ensure clarity in both high- and low-pitched sound filtering.
Description
Features
- 105℃, 2,000 hours assured
- Non-polarized
- Have excellent frequency characteristics.
- suitable for crossover network of high-pitched and low-pitched sounds in high-fidelity sound systems
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40℃~+105℃ |
| Capacitance Tolerance | ±5% (J), ±10% (K), ±20% (M) (at 20℃, 1KHz) |
| Leakage Current (μA) | I≦0.04CV + 3 (u A) |
| MAX Dissipation Factor | MAX 10% at 120Hz |
Drawing
