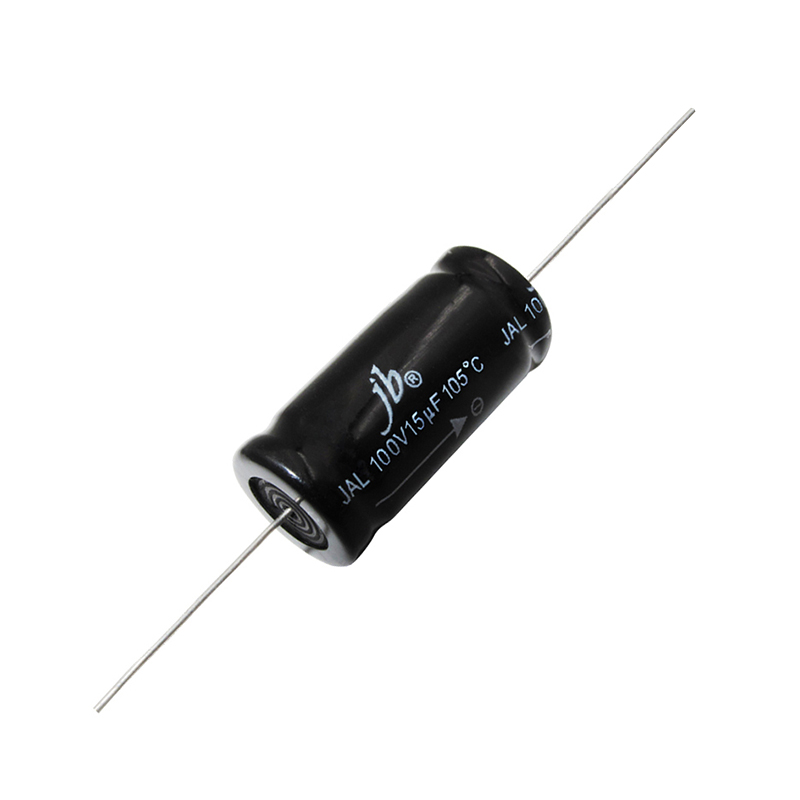

JAL – Bi-Polar Aluminum E-Caps for Loudspeaker
JAL Series Bi-Polar Aluminum Electrolytic Capacitors are optimized for loudspeaker and audio crossover circuits. With a wide -40°C to +105°C range and non-polarized design, they deliver stable sound performance and support reversed polarity conditions.
These capacitors feature low distortion and reliable frequency response. Ideal for hi-fi audio systems requiring clarity, stability, and compact radial form factors.
Description
Features
- -40℃ ~ +105℃
- Non-polarized
- Excellent frequency characteristics in the audio range.
- suitable for use in circuits whose polarity is sometimes reversed or unknown
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40℃~+105℃ |
| Capacitance Tolerance | ±10% (K), ±20% (M) (at 1KHz) |
| Leakage Current (μA) | Install specified value or less |
| MAX Dissipation Factor | MAX 15% at 1KHZ |
Drawing
