JBR-3306 Single-Turn and Open Frame Trimming Potentiometers

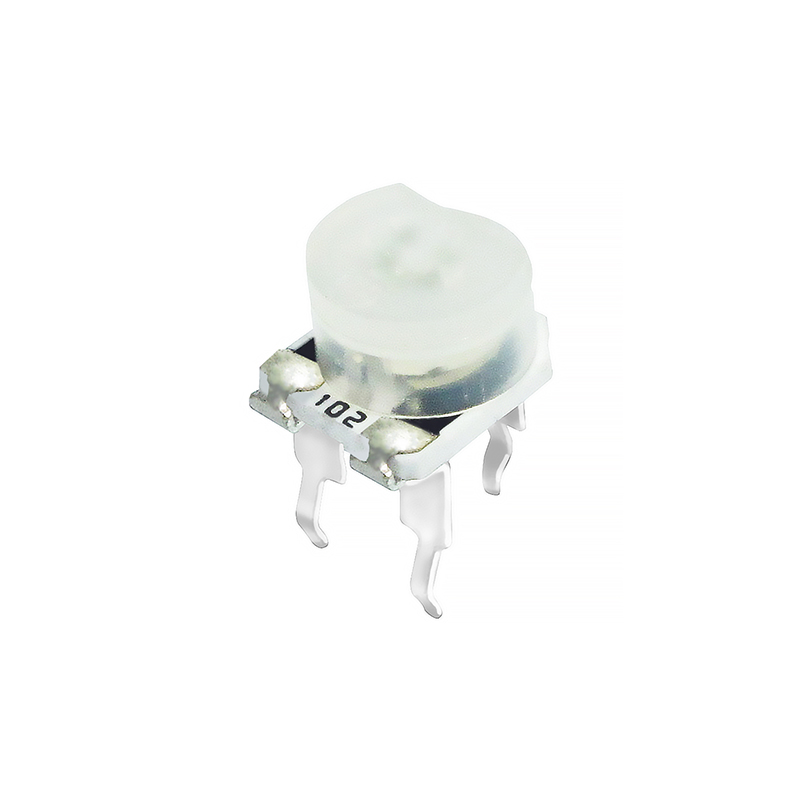

JBR-3306 trimming potentiometer by jb capacitors company features a single-turn, open-frame design, tailored for industrial environments that require reliable and stable tuning. This model is built with cermet materials for enhanced durability and precision.

Available in 2 terminal styles, JBR-3306 supports compact circuit integration while maintaining ease of adjustment and long-term electrical stability. It is an ideal solution for engineers seeking simple yet dependable fine-tuning components.

Description

Features

  • Single-Turn / Cermet / Industrial / Open Frame
  • 2 Terminal Styles
Specifications

Specifications

Standard Resistance Range 100Ω - 1MΩ
Resistance Tolerance ±25% std
Terminal Resistance ≤±1%R or 30Ω
Contact Resistance Variation (CRV) ≤±3%R or 5Ω
Adjustment Angle 215°
Power Rating 0.2W (70℃)
Temperature Range -30℃ ~ +100℃
Temperature Coefficient ±250x10⁻⁶/℃
Load Life ΔR≤±(5%R+0.1Ω), CRV≤±3%R or 5Ω (0.2W, 1000h, 70℃)
Rotational Life ΔR≤±(10%R+0.5Ω), CRV≤±3%R or 5Ω (200 cycles)
Mechanical Angle 260°
Starting Torque ≤35mN.m
Stop Strength ≥50mN.m
