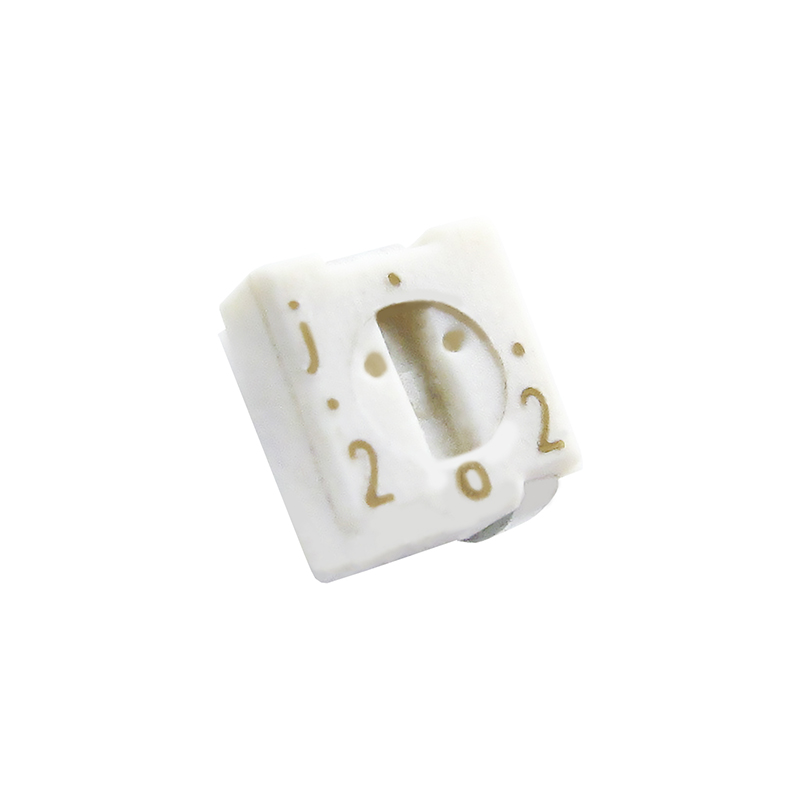

JBR-3313 3mm Surface Mounted SMD Trimming Potentiometers
The JBR-3313 trimming potentiometer is a 3mm surface-mounted SMD component designed for high-precision applications. Its single-turn cermet construction enables fine resistance adjustment in tight board layouts where space efficiency is critical.
This model is ideal for compact devices requiring stable and accurate tuning, such as portable electronics and industrial control systems. The SMD format ensures compatibility with modern surface-mount assembly processes.
Specifications
Specifications
| Standard Resistance Range | 10Ω - 2MΩ |
|---|---|
| Resistance Tolerance | ± 20% (Standard) |
| End Resistance | 1% or 2Ω max. (whichever is larger) |
| Contact Resistance Variation | 3% or 3Ω |
| Resolution | Infinite |
| Insulation Resistance | 500 VDC. 100 megohms min. |
| Dielectric Strength | 500 VAC (1 minute) |
| Adjustment Angle | 210° (nominal) |
