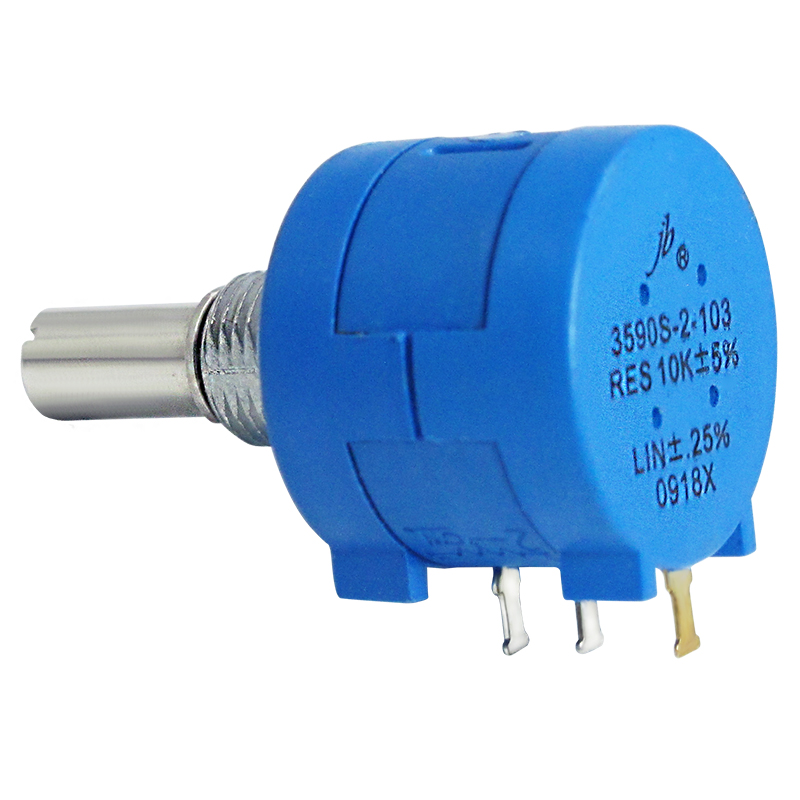

The JBR-3590 wirewound potentiometer is a multi-turn precision component engineered for high-resolution resistance control. Its durable round body and wirewound element ensure stability and repeatability, even in demanding environments.
Available in two shaft styles, the JBR-3590 series is ideal for industrial applications requiring accurate calibration and long mechanical life. Contact us to learn more about customizable configurations.
Standard Resistance Range | 100Ω - 100KΩ |
---|---|
Resistance Tolerance | ± 5% |
Independent Linearity | ± 0.5% |
Effective Electrical Travel | ≥3600°-10° |
Terminal Resistance | ≤0.2%R or 5Ω |
Noise | ≤3% R or 3Ω |
Insulation Resistance | R≥1GΩ |
Withstand Voltage | 101.3kPa 710V, 8.5kPa 470V |
Power Rating | 2W@+70℃, 0W@+125℃ |
Temperature Range | -55℃ ~ +125℃ |
Temperature Coefficient | ± 100ppm/℃ |
Temperature Variation | ΔR≤±2%R, Δ(Uab/Uac)≤±1% |
Collision | 390m/s², 4000 cycles, R≤1%R |
Vibration | 10-500Hz, 0.75mm, or 98m/s², 6h ΔR≤±1%R, Δ(Uab/Uac)≤±2% |
Climate Category | ΔR≤±3%R, R1≥100MΩ |
Electrical Endurance at 70℃ | 2W, 1000h, ΔR≤±3%R |
Mechanical Endurance | 10,000 cycles, ΔR≤±3%R |
Steady Damp-Heat | ΔR≤±3%R, R1≥100MΩ |
Total Mechanical Travel | 3600°± 10° |
Starting Torque | ≤36mN·m |
Clutch Torque | ≥300mN·m |
Standard Packaging | 25pcs/box |
