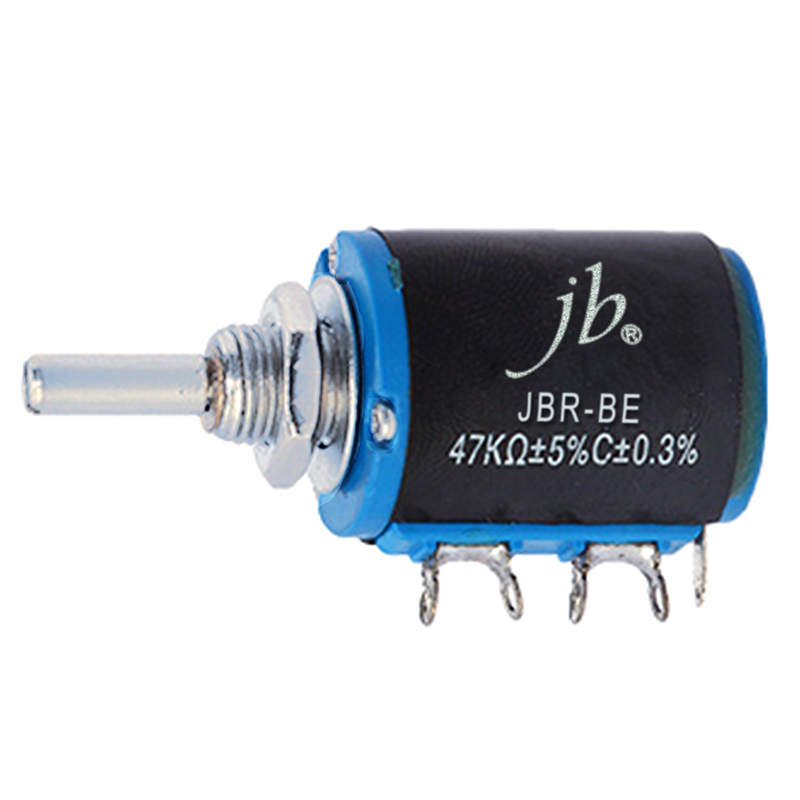

JBR-BE Wirewound Potentiometers

The JBR-BE Wirewound Potentiometer is designed for high-precision control, offering a resistance range from 100Ω to 47KΩ with ±5% tolerance and ±0.3% linearity. With a voltage rating of 160V and 1W power capacity at 55°C, it ensures stable performance in demanding applications.

Built to last, this model provides 1800° mechanical travel and is engineered to endure mechanical stress, making it ideal for fine-tuning in industrial control systems and rugged environments.

Description

Features

  • Resistance range: 100Ω ~ 47KΩ
  • Precise adjustments with ±0.3% linearity
  • Rated power: 1W (55°C)
  • Durable with 1800° mechanical travel
  • Reliable voltage rating of 160V
Specifications

Specifications

Standard Resistance Range (Ω) 100Ω ~ 47KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.3%
Rated Power 1W (55°C)
Voltage Rating 160V
Total Mechanical Travel 1800° ± 20°
Starting Torque 3.5-100mN·m
