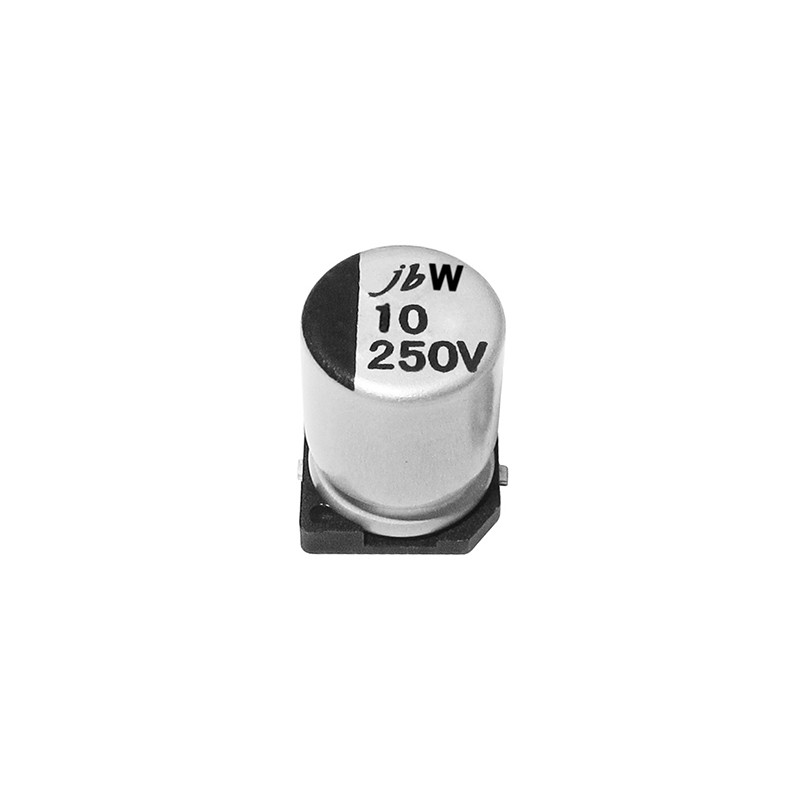

JCW – 10000H at 105°C, Long Life Assurance SMD Aluminum Electrolytic Capacitors (discontinued)
The JCW series offered 10000-hour life assurance at 105°C, making it one of the most durable SMD aluminum electrolytic capacitors in jb Capacitors’ portfolio. Designed for high-density PCB applications, it provided excellent reliability, reflow soldering support, and full RoHS compliance.
Note: This series is currently discontinued. For replacement options, please contact us directly.
Description
Features
- Life time 105℃ 10000hrs standard product
- High stability and reliability
- Reflow soldering is available
- Available for high densify surface mounting
- Comply with the RoHS directive.
Specifications
Specifications
| Operating Temperature | -40°C~ +105°C |
|---|---|
| Voltage Range | 6.3V ~ 450V.DC |
| Capacitance Range | 1 ~ 1000μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | 6.3V ~ 50V.DC, I≤ 0.03CV (μA) or 4 (μA)whichever is greater (after 2 minutes); 160V ~ 450V.DC I≤ 0.04CV + 100 (μA) (after 2 minutes) |
