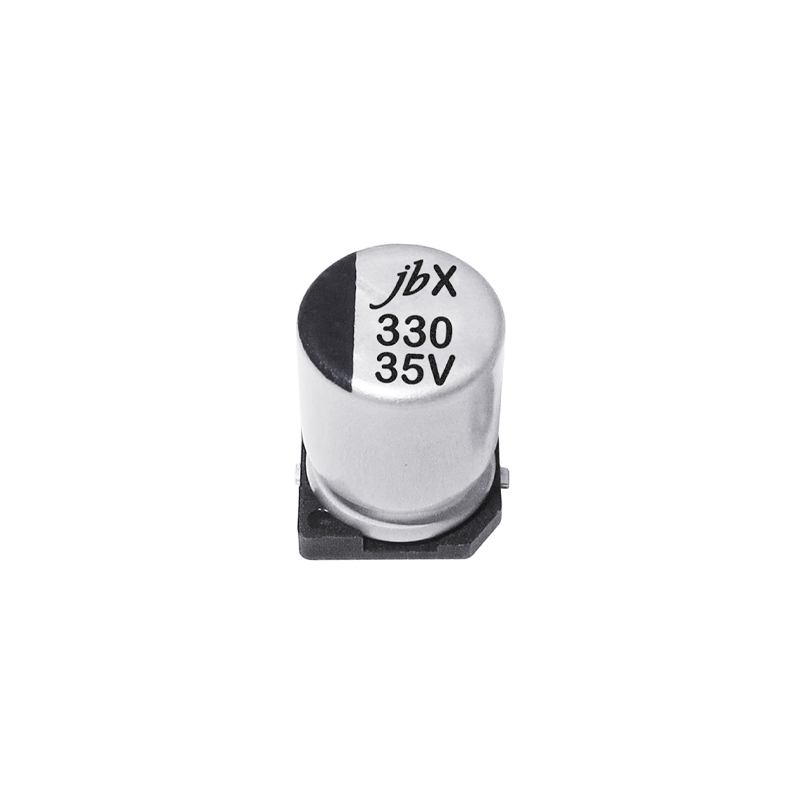

JCX – 2000H at -55°C~ +105°C Small Size SMD Aluminum Electrolytic Capacitors
The JCX series SMD aluminum electrolytic capacitors are designed for compact layouts and harsh environments. Featuring a wide operating temperature range from -55°C to +105°C and a 2000-hour lifespan at 105°C, these capacitors are ideal for space-constrained, high-reliability applications. Solvent-proof construction enhances durability during cleaning processes. RoHS compliant and suitable for reflow soldering.
Description
Features
- 105℃ 2,000 hours
- Solvent proof (within 2 minutes)
Specifications
Specifications
| Operating Temperature | -55°C~ +105°C |
|---|---|
| Voltage Range | 6.3V ~ 50V.DC |
| Capacitance Range | 10 ~ 2200μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current | The greater value of either 0.01CV or 3μAr μA/after 2minutes (max) |
