JFB – Metallized Polyester Film Capacitors

jb Capacitors’ JFB series Metallized Polyester Film Capacitors are engineered for versatile use in EMI filtering, DC blocking, and coupling applications. Built with non-inductive, extended foil and epoxy coating, they offer excellent moisture resistance and thermal stability for both industrial and commercial electronics.

Their self-healing dielectric ensures high reliability even in harsh environments, making them an ideal choice for general-purpose communication devices and power supplies. With competitive pricing and consistent performance, the JFB series is a trusted solution for demanding circuit designs.

Description

Features

  • Non-inductive, extended foil, dip coated, high moisture resistance.
  • Good reputation in use with filtering, DC blocking coupling and general communication equipment.
  • High reliable with its Self-Healing performance.
  • Coated with epoxy resin for superior heat resistance, humidity resistance and solvent resistance.
Specifications

Specifications

Operating Temperature -40°C~ +85°C
Rated Voltage DC 100V(2A), 250V(2E), 400V(2G), 630V(2J).
Capacitance Range 0.01 ~ 6.8μF
Capacitance Tolerance ±5%, ±10%, ±20%
Insulation Resistance UR≤100V C≤0.33µF ≥3750MΩ,
C>0.33µF ≥1250S
UR>100V C≤0.33µF ≥7500MΩ
C>0.33µF ≥2500S
(20℃ 100VDC 60SEC)
P.S: T[s]=I.R.[MΩ]*CN [µF]
Dissipation Factor ≤0.01 (at 1KHz)
Drawing

Drawing

JFB - Metallized Polyester Film Capacitors (Top Seller)

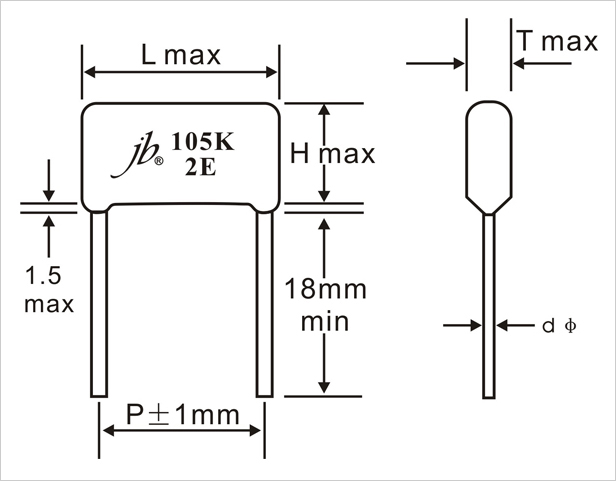

JFB - Metallized Polyester Film Capacitor Drawing
