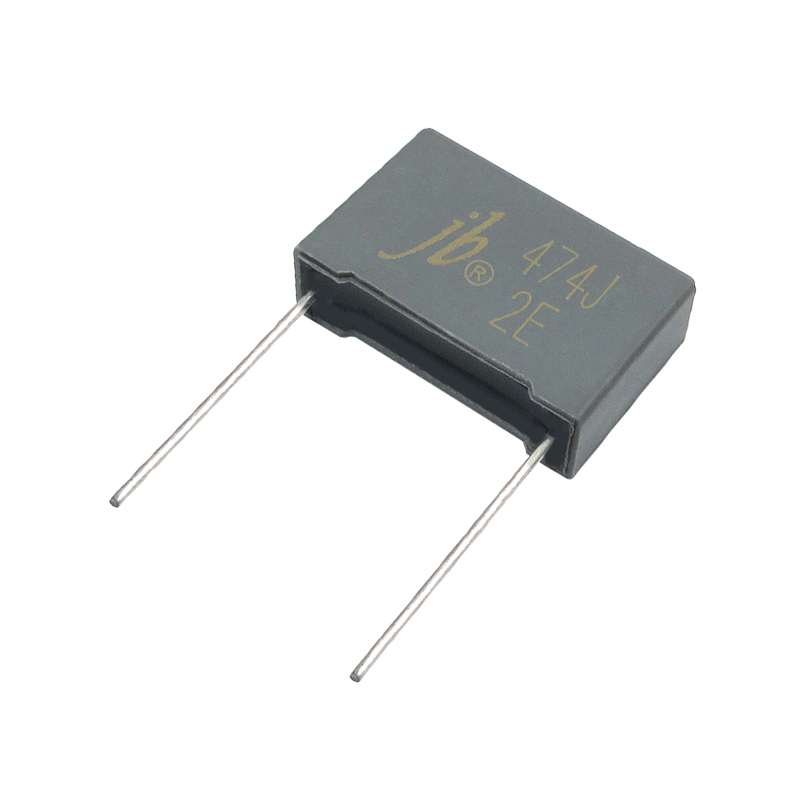

JFD – Box Type Metallized Polyester Film Capacitors
JFD box type metallized polyester film capacitors feature a non-inductive design with uniform casing, making them suitable for EMI suppression and energy storage. Engineered for high reliability, they are widely used in industrial equipment and consumer-grade circuits.
Description
Features
- Non-inductive, plastic case and epoxy resin.
- Box type provide the identical outer appearance.
- High reliability.
Specifications
Specifications
| Reference Standard | GB7332 (IEC 60384-2) |
|---|---|
| Climatic Category | 40/ 85/ 21 |
| Rated Voltage | 63V, 100V, 160V, 250V, 400V, 630V.DC |
| Capacitance Range | 0.001 ~ 2.2μF |
| Capacitance Tolerance | ±5%, ±10%, ±20% |
| Voltage Proof | 1.6UR (5s) |
Insulation Resistance
Specifications
| UR>100V | ≥7,500MΩ, CR≤0.33μF ≥2,500s, CR>0.33μF |
(20°C, 100V, 1min) |
|---|---|---|
| UR≤100V | ≥3,750MΩ, CR≤0.33μF ≥1,250s, CR>0.33μF |
(20°C, 10V, 1min) |
Dissipation Factor
Specifications
| Frequency | CR≤0.1μF ≤1.0% |
CR>0.1μF |
|---|---|---|
| 1KHz | ≤1.0% |

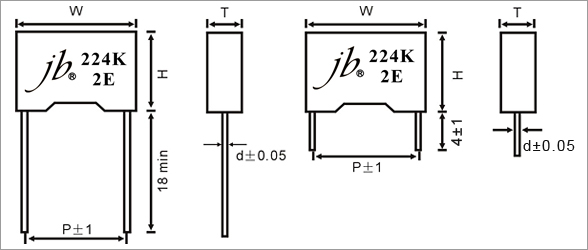

Drawing
Drawing
JFD - Box Type Metallized Polyester Film Capacitors
