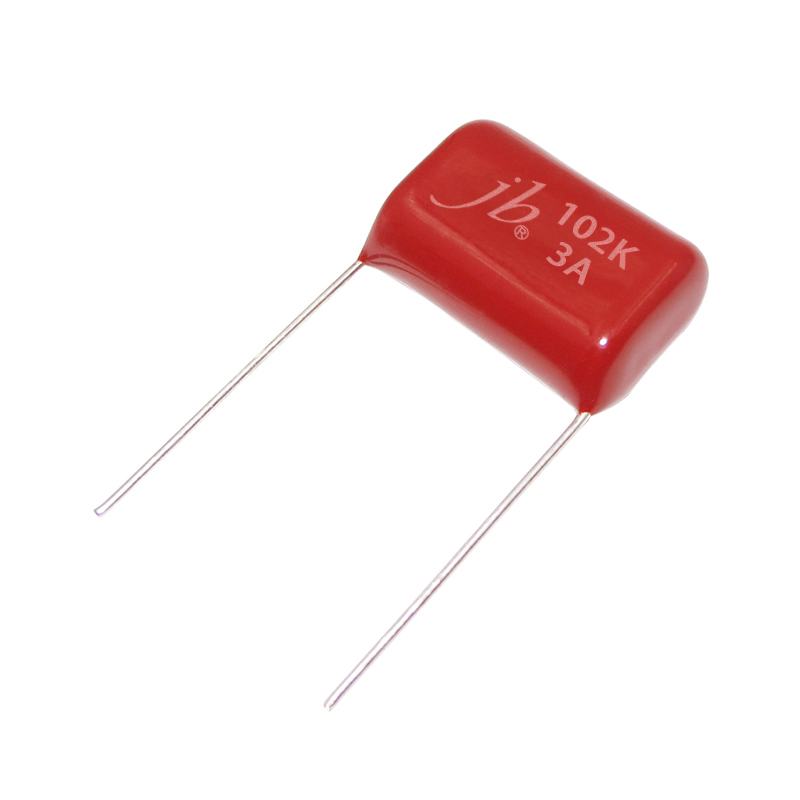

JFP – High Voltage Metallized Polypropylene Film Capacitors

JFP is a High Voltage Metallized Polypropylene Film Capacitor rated from 1000VDC to 2000VDC, featuring extended foil construction and flame-retardant epoxy coating. It is ideal for high AC current, pulse-forming, and RF generator applications. Designed for stability and moisture resistance, JFP ensures reliable performance under demanding electrical conditions.

Description

Features

  • Extended foil, flame retardant epoxy coated.
  • Ideal for high AC current applications, such as CRT deflection for R-F generators and pulse-forming networks.
  • Coated with flame retardative epoxy resin which provides from humidity and mechanical damage.
  • Temperature coefficient is negative and variety linear over the operation temperature.
Specifications

Specifications

Operating Temperature -40℃~ +85℃
Rated Voltage 1000V, 1250V, 1600V, 2000V.DC
Capacitance Range 0.001 ~ 0.15uF
Capacitance Tolerance ±5%, ±10%
Dissipation Factor ≤0.1% (20 , 10KHz)
Insulation Resistance ≥25000MΩ (CR≤0.1 μF)
≥2000s (CR>0.1 μF)
(20℃, 1min)
Drawing

Drawing

JFP - High Voltage Metallized Polypropylene Film Capacitors

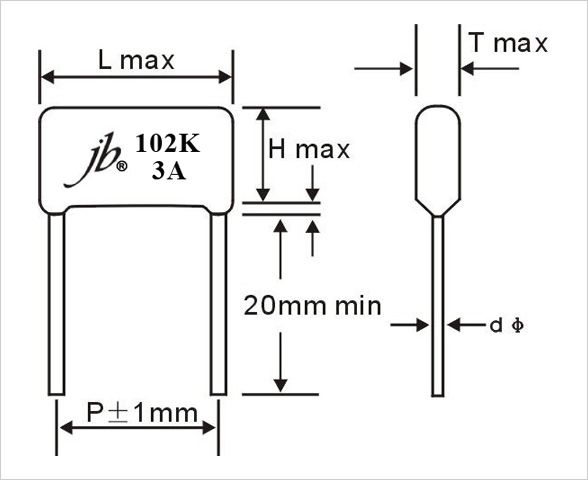

JFP - High Voltage Metallized Polypropylene Film Capacitor Drawing
