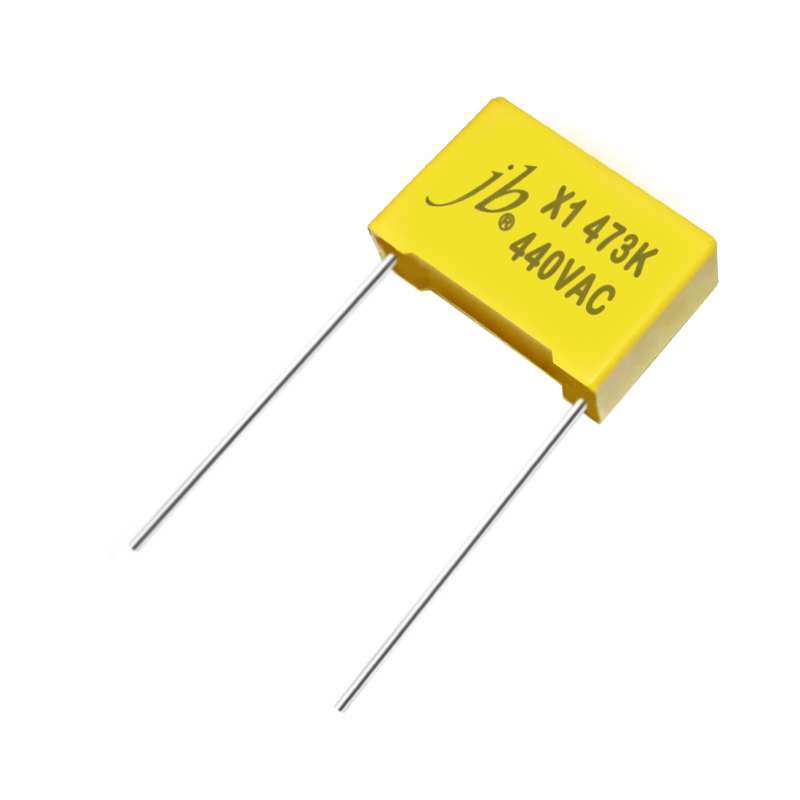

JFT – Metallized Polypropylene Film AC Capacitors Class-X1
JFT X1 Metallized Polypropylene Film Capacitors are engineered for enhanced AC interference suppression and surge resistance. With stable capacitance, self-healing properties, and compliance with Class X1 safety standards, these capacitors provide reliable protection in power supply circuits and EMI filters.
Description
Specifications
Specifications
| Capacitor Class | “X1” stands for X1 class |
|---|---|
| Climatic Category | 55/ 105/ 21 |
| Operating Temperature Range | -55°C~ +105°C (for which the capacitor can be operated continuously at rated voltage. |
| Rated Voltage | 300V.AC, 440V.AC |
| Capacitance Range | 0.0022 ~ 4.7μF |
| Capacitance Tolerance | ±10% |
| Insulation Resistance | (I.R.) >=15,000 MOhm (C<=0.33μF) >=5,000 MOhm (C>0.33μF) |
| Dissipation Factor | (DF) 0.001 (0.1%)max. at 1KHz |

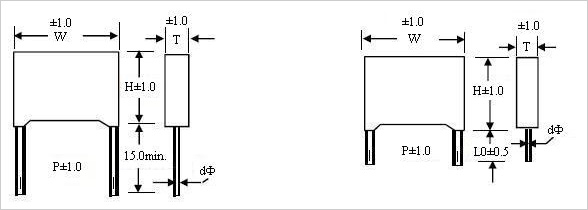

Drawing
Drawing
