JFX – Premium Metallized Polypropylene Film Capacitors – Axial

jb Capacitors’ JFX Series offers Premium Metallized Polypropylene Film Capacitors in axial form, engineered for high-end audio applications. With precise capacitance tolerances of ±3% and ±5%, very low ESR, and quick transient response, they deliver exceptional sound quality. Rated up to 630V DC and designed for 2,000 hours at 105°C, JFX capacitors are ideal for use in high-current audio circuits requiring long-term stability and performance.

Description

Features

  • Quick transient design
  • High Precise Capacitance±3%,±5%
  • Very Low Dielectric absorption factor
  • Very Low Dissipation factor
  • Very Low ESR
  • Very Low Inductance
  • Excellent handling of high current audio pulses
Specifications

Specifications

Passive flammability GB10191-88 IEC384-16
Operating temperature -55℃~+85℃
Capacitance range 0.047~100uF
Capacitance tolerance ±3%、±5% 1KHz
Rated voltage 250V、400V、630V.DC
Withstand voltage 1.5VR 5S
Dissipation factor ≤0.0020 1KHz
Insulate the electric resistance CR≤0.33uF, I.R≥15,000MΩ;
CR>0.33uF, I.R≥5,000S
Leads Diameter 0.8、1.0 Tinned Pure Copper Wire

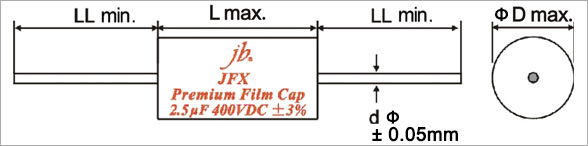

Drawing

Drawing

JFX - Premium Metallized Polypropylene Film Capacitors – Axial (Hot)
JFX - Premium Metallized Polypropylene Film Capacitors – Axial Drawing
