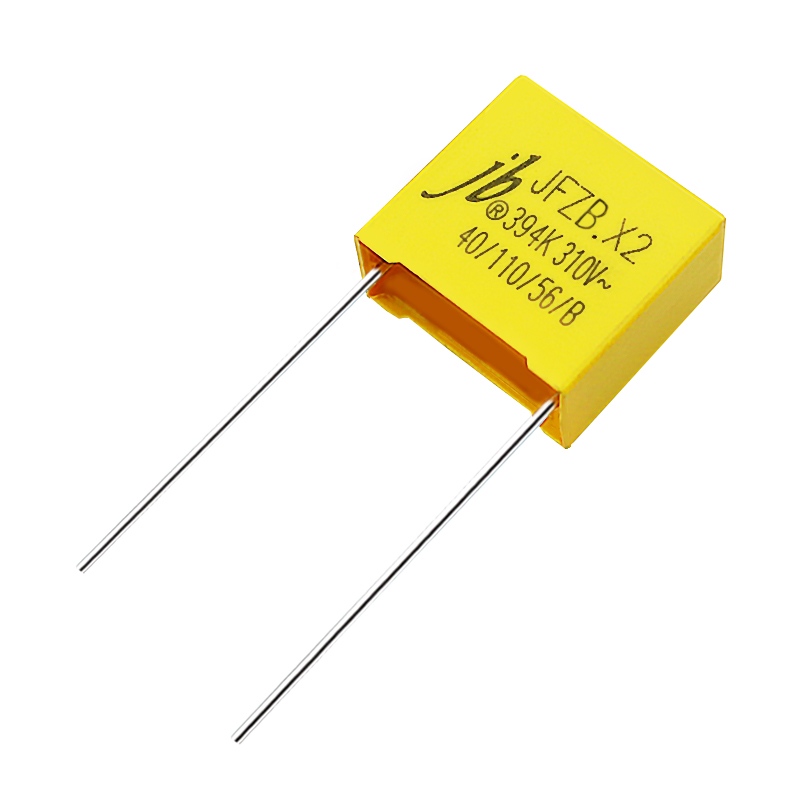

JFZB – 310VAC X2 Metallized Polypropylene Film Capacitors For EMI Filters
The JFZB series by jb Capacitors features 310VAC X2 Metallized Polypropylene Film Capacitors, optimized for EMI suppression, across-the-line filtering, and interference suppression circuits. Designed with a non-inductive wound construction and self-healing film, they offer long-term stability, moisture resistance, and surge protection.
Encased in UL 94V-0 flame-retardant epoxy, JFZB capacitors are widely used in power supplies, appliance control circuits, and filter modules requiring high safety and durability standards. Their performance ensures low loss, high reliability, and compliance with EMI regulations.
Description
Features
- Metallized polypropylene film, Non-inductive wound constructure
- Good self-healing properties,withstanding surge voltage stressing
- Good properties in damp environment
- Long stability of capacitance
- Excellent active and passive flame resistant abilities
- Plastic case Flame retardant epoxy resin sealed(compliance with UL 94V-0)
- Ammo Tape Pack, Cut leads, Long leads are available.
- Fast sales response for cross, quotation.
Specifications
Specifications
| Operating Temperature | -40°C~ +110°C |
|---|---|
| Voltage Rating | 310VAC |
| Capacitance Range | 0.0022 ~ 2.2μF |
| Capacitance Tolerance | std ±10% (K) |
| Insulation Resistance | CR≤0.33μF, I.R≥15,000MΩ CR>0.33μF, I.R≥5,000S , (20℃，100V,1min) |
| Dissipation Factor | 0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃) 0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃) 1.0μF≤CR≤10μF≤0.3% (1KHz,20℃) |
| Voltage Proof | 2200V~2500V(2S) |

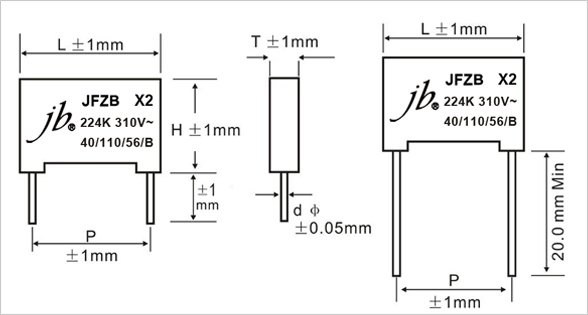

Drawing
Drawing
