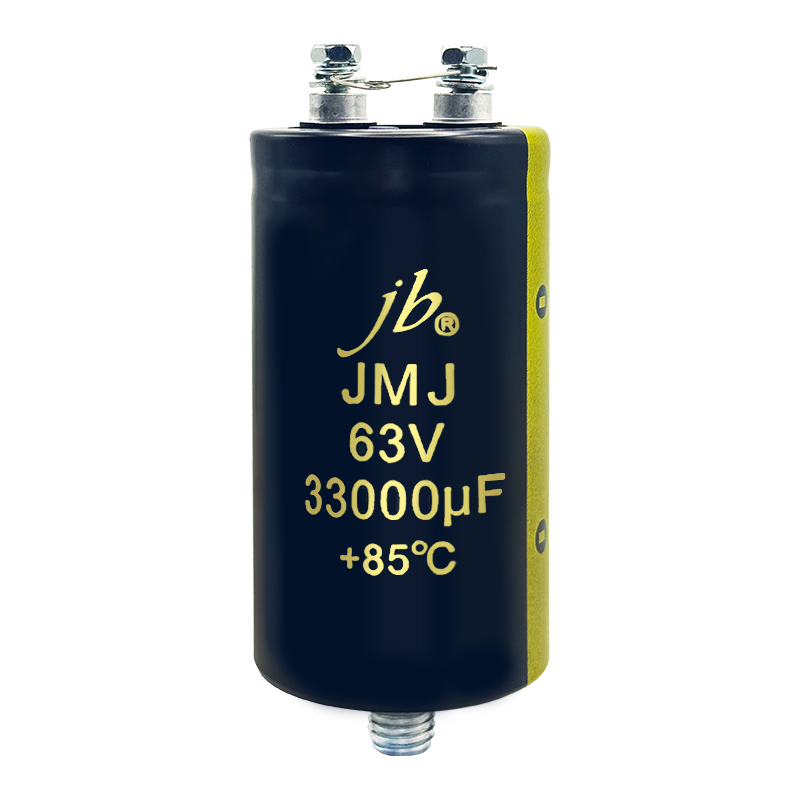

JMJ – 2000H at 85°C, Miniaturized, Screw Aluminum Electrolytic Capacitors
The JMJ series by jb Capacitors delivers miniaturized screw aluminum electrolytic capacitors with 2000-hour endurance at 85°C. Offering high ripple current capability and flexible size options, they are ideal for applications such as inverters, communication equipment, and industrial power systems.
With stable performance and compact construction, the JMJ series ensures long-term reliability for engineers designing high-efficiency power circuits.
Description
Specifications
Specifications
| Items | Performance Characteristics |
|---|---|
| Operating Temperature Range (°C) | -40°C~+85°C (315V, -25°C~+85°C) |
| Leakage Current (μA) | 0.02CV or 5mA, whichever is smaller. (at 25°C, after 5 minutes) C: Nominal capacitance (μF) V: Rated voltage (V) |
| Capacitance Tolerance (25°C,120Hz) | ±20% |
| Dissipation Factor | See Standard Ratings Table |
Drawing
