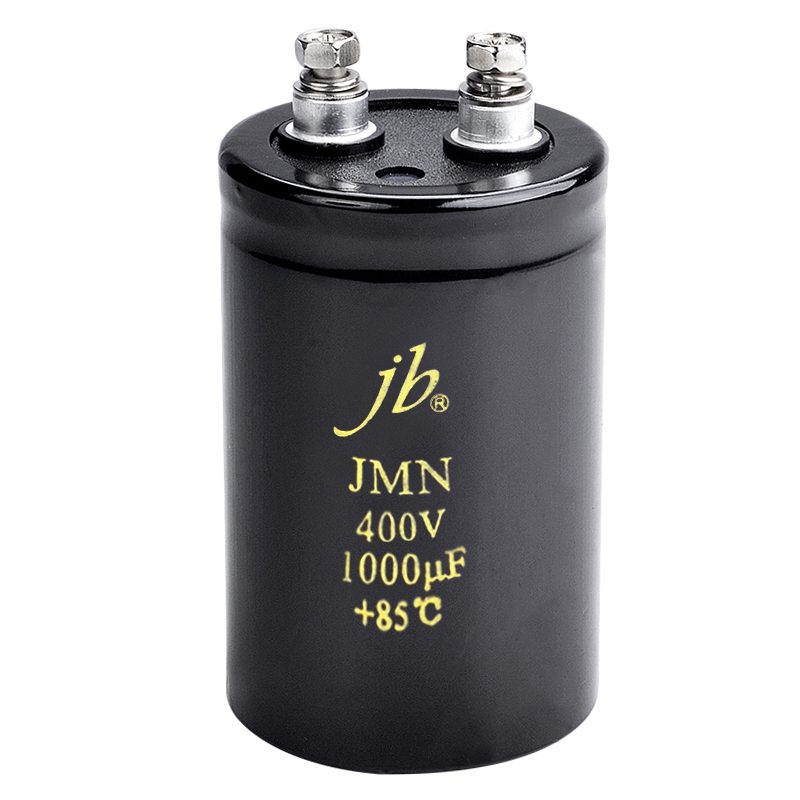

JMN – 5000H at 85°C Screw Aluminum Electrolytic Capacitors

The JMN series screw aluminum electrolytic capacitors from jb Capacitors are engineered for 5000-hour durability at 85°C, ensuring long-lasting performance in high-demand environments.

Designed to handle high ripple currents, they are widely used in electric vehicles, communication power systems, electric trains, and general-purpose inverters. Flexible size options and stable thermal performance make them a reliable choice for industrial and energy applications.

Description

Features

  • Load life of 5000 hours at 85°C
  • Size may be selected
  • High ripple current
  • Used for computers, communication powers, Hi-ripple circuit of electric vehicle, electric train, general-purpose inverter
Specifications

Specifications

Items Performance Characteristics
Rated Voltage Range (V) 350V~450V
Operating Temperature Range (°C) --40°C~+85°C
Capacitance Tolerance (25°C,120Hz) ±20%
Leakage Current (μA) 0.01CV or 5mA, whichever is smaller. (at 25°C, after 5 minutes)
Where, C: Nominal capacitance (μF) V: Rated voltage (V)
Dissipation Factor (25°C, 120Hz) 0.15
Drawing
