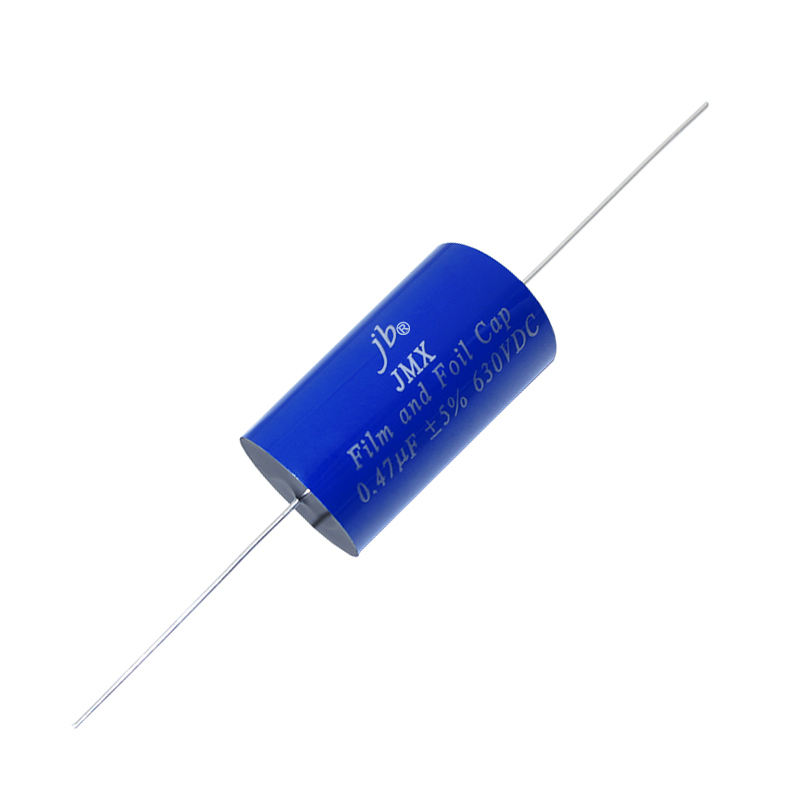

JMX – Music Aluminum Foil and Film Metallized Polypropylene Capacitors Axial
The JMX Series by jb Capacitors features Music-Grade Aluminum Foil and Film Metallized Polypropylene Capacitors with axial construction. With ±5% precision, low ESR, and excellent signal linearity, these capacitors are engineered for audiophile-grade clarity in tweeters, mid-range drivers, and premium crossover circuits. Capacitance range is from 0.01µF to 0.47µF, making them ideal for fine-tuned frequency handling in high-end music systems.
Description
Features
- Top of the range pure aluminum foil capacitor
- High Precise Capacitance±5%
- Very Low Dielectric absorption factor
- Very Low Dissipation factor
- Very Low ESR
- Very Low Inductance
Specifications
Specifications
| Passive flammability | GB10191-88 IEC384-16 |
|---|---|
| Operating temperature | -55℃～+85℃ |
| Capacitance range | 0.01~0.47uF |
| Capacitance tolerance | ±5%(J) 1KHz |
| Rated voltage | 630V DC |
| Withstand voltage | 1.6VR 5S |
| Dissipation factor | ≤0.0002 1KHz |
| Insulate the electric resistance | CR≤0.33μF, I.R≥15,000MΩ CR>0.33μF, I.R≥5,000S |
| Leads Diameter | 0.8mm Tinned Copper Wire |

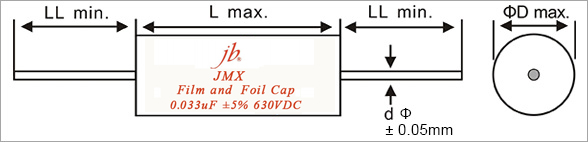

Drawing
Drawing
JMX - Music Aluminum Foil and Film Metallized Polypropylene Capacitors Axial (Hot)
