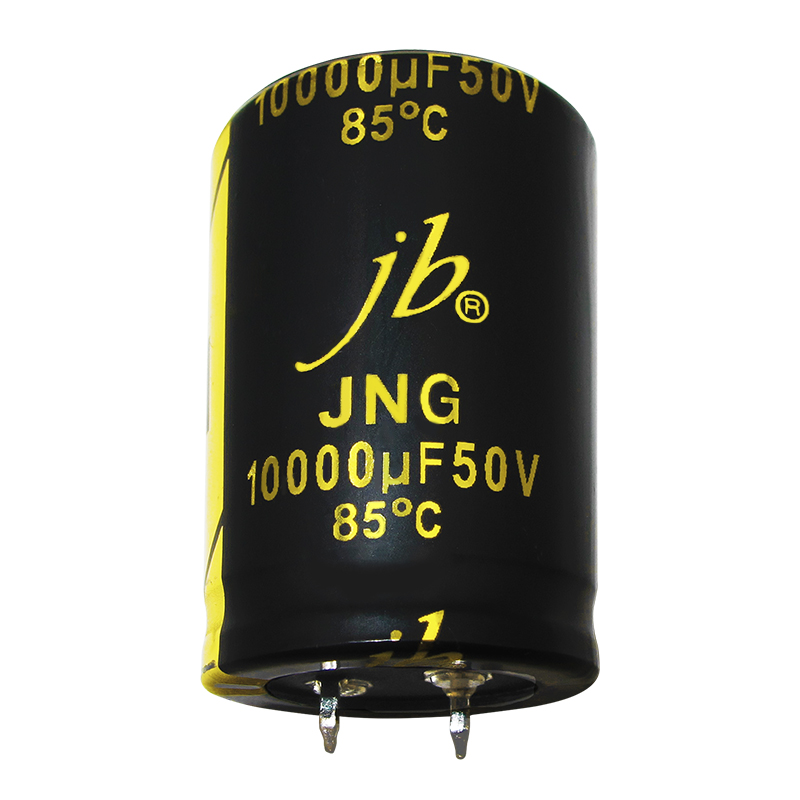

JNG – 5000H at 85°C, Snap in Aluminum Electrolytic Capacitors, Miniaturized Size, Long Life
The JNG series by jb Capacitors features long life snap-in aluminum electrolytic capacitors rated for 5000 hours at 85°C — equivalent to 80,000 hours at 45°C. These miniaturized capacitors deliver high ripple current performance in a compact footprint, ideal for power supplies, amplifiers, and industrial electronics.
Designed for PCB mounting, the JNG series offers stable, space-saving performance where extended endurance and thermal reliability are critical.
Description
Features
- Load life of 5000 hours at 85°C, equal to 80000 hours (9years) at 45°C
- High ripple current
- Smaller size
- PCB Mounting
Specifications
Specifications
| Items | 10V~100V: -40℃+85℃ | 160V~450V: -25℃~+85℃ |
|---|---|---|
| Operating Temperature Range (°C) | -40°C~+85°C (450V:-25°C~+85°C) | |
| Capacitance Tolerance (25°C, 120Hz) | ±20% | |
| Leakage Current (μA) | 0.01CV or 1.5mA whichever is smaller. (at 25°C, after 5 minutes) C: Nominal Capacitance (μF) V: Rated Voltage (V) |
|

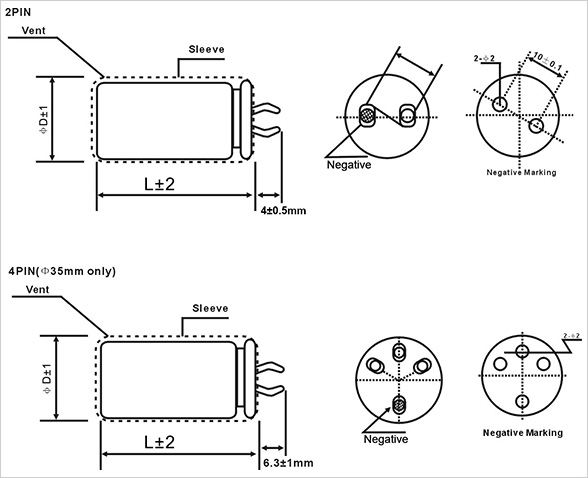

Drawing
