JNJ - 3000H at 105°C Miniaturized Long Life Snap-in Aluminum Electrolytic Capacitors designed for high-performance applications, featuring a lifespan of 3000 hours at 105°C, low impedance, and compact size. These capacitors support voltage ratings from 10V to 400V and capacitance values ranging from 1μF to 2200μF, making them ideal for efficient energy storage in power supply circuits and various electronic devices.
Click to enlarge
Home / Products / Aluminum Electrolytic Capacitors / Snap-in Aluminum Electrolytic Capacitors / JNJ

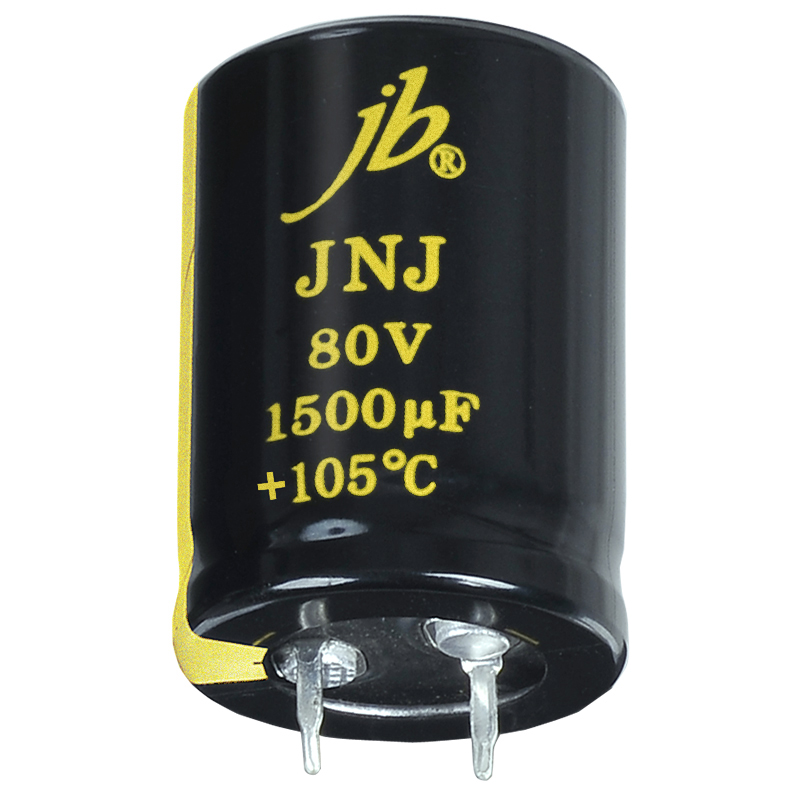

JNJ – 3000H at 105°C, Miniaturized, Long Life Snap in Aluminum Electrolytic Capacitors

jb Capacitors’ JNJ series snap-in aluminum electrolytic capacitors combine long operational life—3000 hours at 105°C—with a compact form factor. Ideal for power supplies and industrial-grade circuits, they deliver high ripple current capability and PCB-mounting convenience.

Engineered for space-constrained designs, JNJ capacitors ensure stable performance and durability. Perfect for engineers seeking reliable snap-in electrolytic capacitors with long lifespan and reduced footprint.

Datasheet
Add to wishlist
Add to quote
Description

Features

  • Load life of 3000 hours at 105°C, equal to 96000 hours (11 years) at 55°C
  • High ripple current
  • Smaller size
  • PCB Mounting
Specifications

Specifications

Items 10V~100V: -40℃+105℃ 160V~400V: -25℃~+105℃
Operating Temperature Range (°C) -40°C~+105°C (250V~400V:-25°C~+105°C)
Capacitance Tolerance (25°C, 120Hz) ±20%
Leakage Current (μA) 0.01CV or 1.5mA whichever is smaller. (25°C, after 5 minutes)
C: Nominal Capacitance (μF) V: Rated Voltage (V)

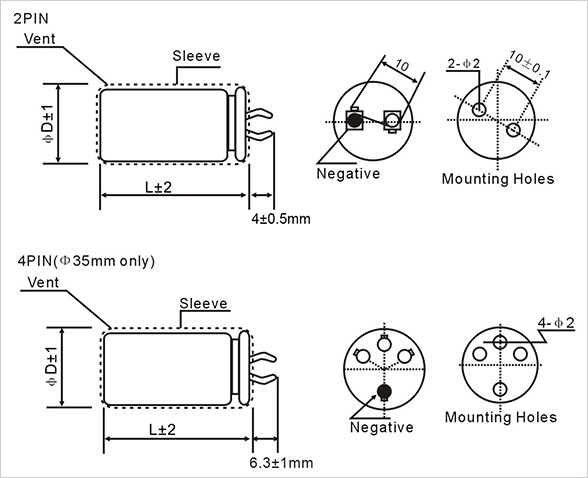

Drawing

dimensions-jnj
