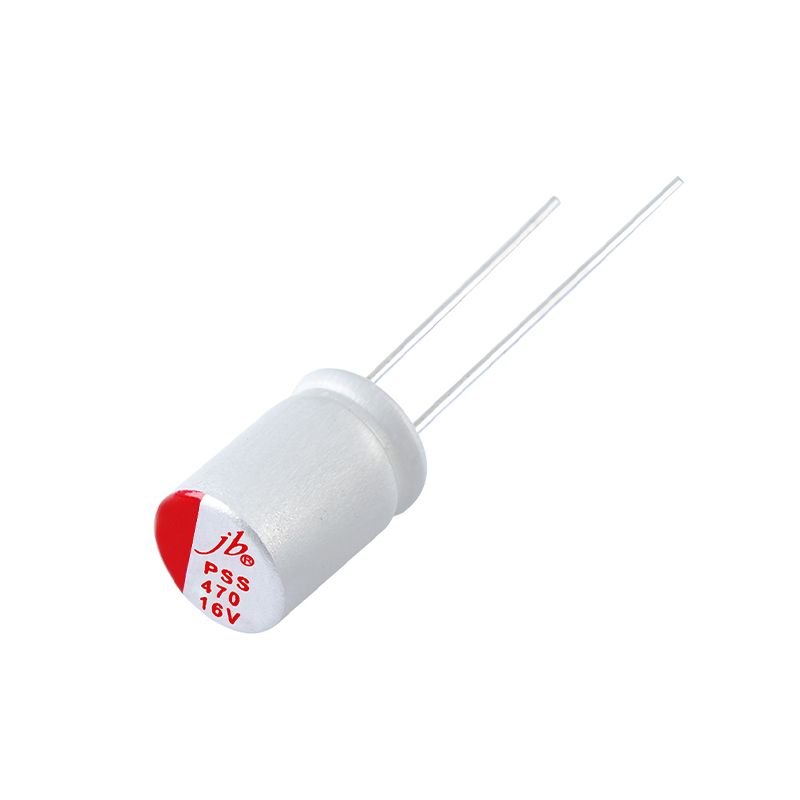

PSS – 2000H at 105°C Standard Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors
The PSS series by jb Capacitors offers standard low ESR radial conductive polymer aluminum solid electrolytic capacitors, rated for 2000 hours at 105°C. These components deliver high ripple current capability and low ESR across high frequencies, making them suitable for telecom, industrial, and power supply applications. Fully RoHS compliant for environmentally conscious designs.
Description
Features
- Standard Series. Load life of 2000 hours at 105°C.
- Large permissible ripple current
- Low ESR at high frequency range
- Comply with the RoHS directive.
Specifications
Specifications
/tr>
| Operating Temperature | -55°C~ +105°C |
|---|---|
| Voltage Range | 2.5V ~25V.DC |
| Capacitance Range | 68~ 2200μF |
| Capacitance Tolerance | ±20% at 120Hz, 20°C |
| Leakage Current(+20℃, max) | ≤0.2CV (μA, after 2 minutes) |

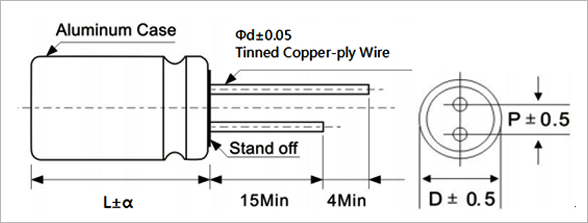

Drawing
Drawing
