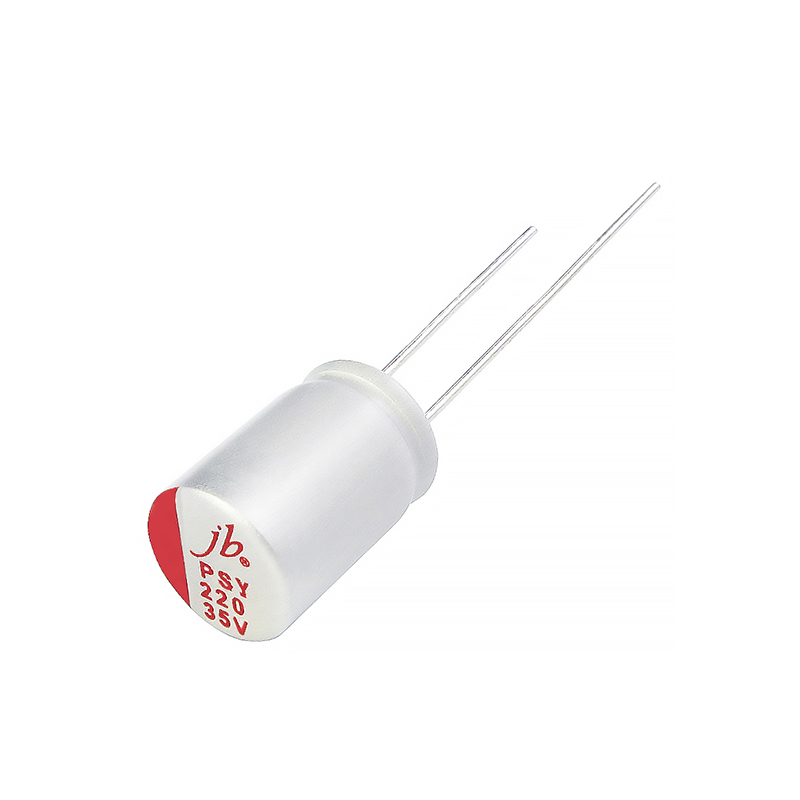

PSY – 5000H at 105°C Low ESR Radial Polymer Aluminum Solid Electrolytic Capacitors

The PSY series by jb Capacitors features high voltage radial polymer aluminum solid electrolytic capacitors with ultra-low ESR and robust ripple current capability. Designed for 5000 hours of endurance at 105°C, these capacitors ensure long-term performance in power-intensive and high-reliability applications. Ideal for compact power supplies, industrial controls, and DC-DC converters, the PSY series delivers stable operation even under thermal stress.

Description

Features

  • Low ESR, high ripple current, high voltage, long life
  • Endurance: 5000 hours at 105°C
Specifications

Specifications

Category Temperature Range (°C) -55°C ~ +105°C
Rated Voltage Range (V) 35V ~ 160VDC
Capacitance Tolerance (+20°C, 120Hz) ±20%
Leakage Current 0.1CV or 299 μA, whichever is greater. Measured after 2 minutes application of rated Voltage at 20°C.
Dissipation Factor (20°C, 120Hz) tanδ (Max.): 0.12
Low Temperature Characteristics (Max. Impedance Ratio)
  • Z(-25°C)/Z(+20°C) ≤ 1.25
  • Z(-55°C)/Z(+20°C) ≤ 1.25 (100kHz)
Endurance The specifications listed below shall be satisfied when the capacitors are restored to 20°C after application of rated voltage for 5000 hours at 105°C:

  • Appearance: No significant damage
  • Capacitance change: ±20% of the initial value
  • D.F.(tanδ): ≤ 150% of the specified value
  • ESR: ≤ 150% of the specified value
  • Leakage current: ≤ The specified value
Damp Heat (Steady State) The specifications listed below shall be satisfied when the capacitors are restored to 20°C after application of rated voltage for 1000 hours at 60°C, 90% ~ 95% RH:

  • Appearance: No significant damage
  • Capacitance change: ±20% of the initial value
  • D.F.(tanδ): ≤ 150% of the specified value
  • ESR: ≤ 150% of the specified value
  • Leakage current: ≤ The specified value
Surge Voltage Surge Voltage = Rated voltage x 1.15(V). The capacitors shall be subjected to 1000 cycles, each consisting of charge with the surge voltages specified at 105°C for 30 seconds through a protective resistor (Rc=1kΩ) and discharge for 5 minutes 30 seconds:

  • Appearance: No significant damage
  • Capacitance change: ±20% of the initial value
  • D.F.(tanδ): ≤ 150% of the specified value
  • ESR: ≤ 150% of the specified value
  • Leakage current: ≤ The specified value
Frequency Coefficient For Ripple Current
Frequency 120Hz~<1kHz 1kHz ≤ freq. < 10kHz 10kHz ≤ freq. < 100kHz 100kHz ≤ freq. ≤ 500kHz
Coefficient 0.05 0.3 0.7 1.0
